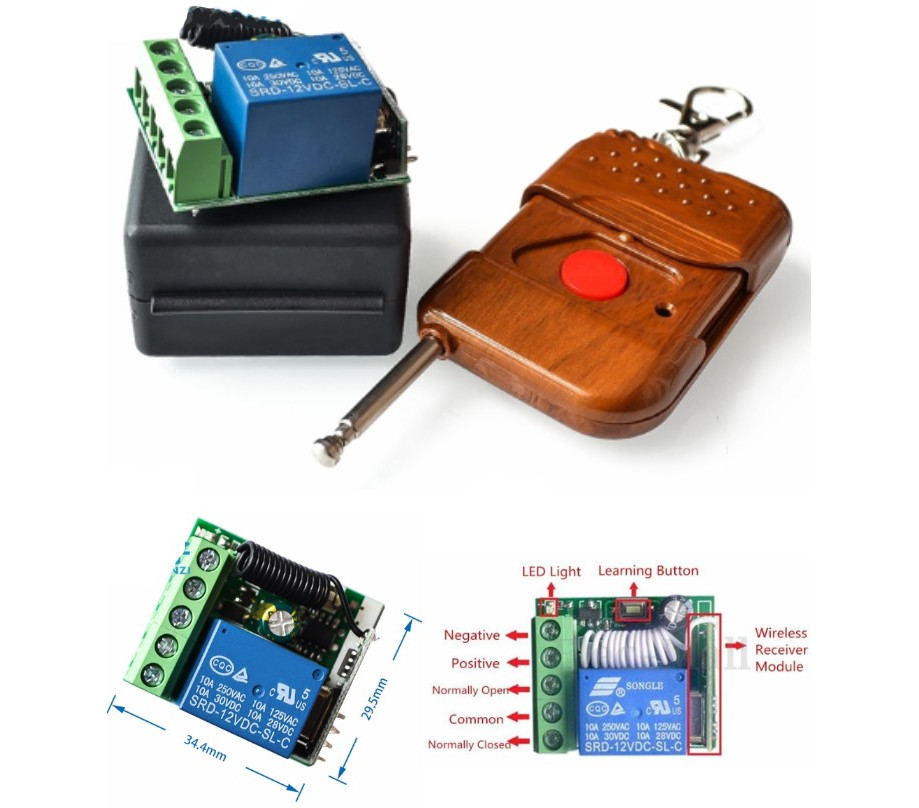

1 Channel 433Mhz learning code Wireless Relay RF Remote Control Receiver
DESCRIPTION Input Voltage: DC10-14V
Standby Current: 5MA
RF Frequency: 433MHZ RF
Working mode: Super heterodyne receiver
Receiver Sensitivity: 90dBm
Remote Control Distance: 100 meter (In open environment)
Decoding Way: MCU Software decoding
Can store the number of remote control: 50
Support remote control type: Fixed code, learning code
Channel: 1CH
Multiple working modes: (Jog/Non-Latched, inter-lock/Latched, self-lock /Self-Latched, Delay off)
Wiring Method: Fixed wiring terminal
Working Voltage: DC12V
Output Current: 10A
Rated load: 10A 250VAC / 10A 125VAC / 10A 30VDC / 10A 28VDC
Output: Normally open, Common, Normally closed Dimension: 3.5cm*3cm*1.6cm
Working/output way
Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF.
One channel switch need one buttons remote control. Self -lock/Self-Latched: Press one button for one
time is working/ON. Press the same button again is stop/OFF.
One channel switch need one buttons remote control. Inter-lock /Latched: Press one button is working/ON,
press another button is stop/OFF. One channel switch need 2 buttons remote control. Delay: Press remote
control relay pull-in, release the remote control and begin timekeeping, after 5s,10s,15s will automatically
close the relay Description Press the learning code .the indicator flash, loosen your finger ,press any button
of the remote control The indicator flash 2 times and off .it mean you learn it successfully.
It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless 433MHz remote control
Remove/clean: press the learning button about 8 seconds, the indicator turn on to off, it means the information
that you keep have been removed successfully .
