Features:
Data Logger

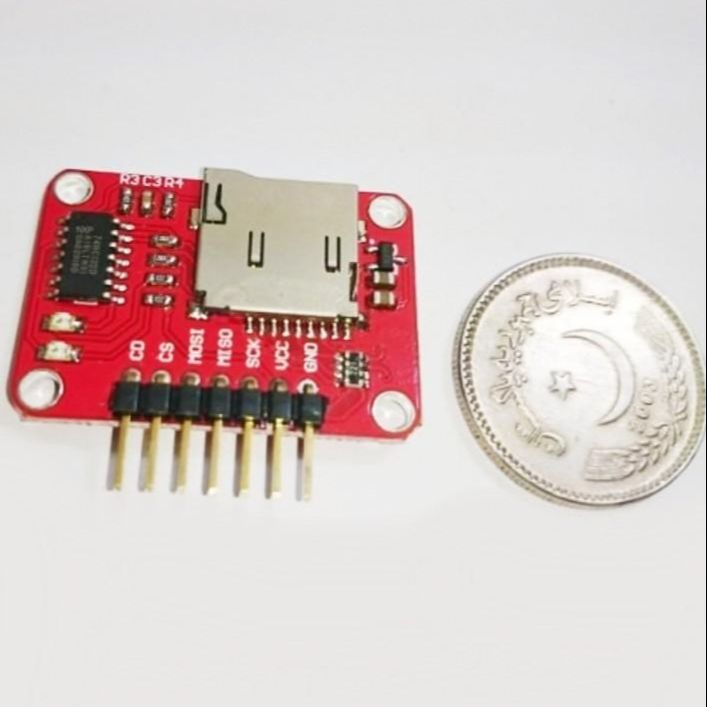

tf card reader and writer module for arduino , adopts easy plug spi connector
the module can program the corresponding program to achieve the sensors and imu temperature and humidity sensor, light sensor, gps etc. data record and other functions via the dupont line, arduino main control board or other singlechip connection. the data can be analyzed and used via tf card reader to read the tf card data
module with 2 leds indicator if card status
specification:
working voltage: 3 5v
communication mode: spi
tf card holder is automatic pop out
size: 25x35mm
pin configuration:
cd: card insert detection
cs: card selection
mosi: spi data input port
miso: spi data output port
sck: spi clock
