 35W USB DC load resistance battery capacity tester



8 viewed per hour

 35W USB DC load resistance battery capacity tester

Product Details
  • SKU: USDLT35-F3A
  • Brand: Megatronics.pk
  • Stock: 6pcs

Product Pricing
PKR1900.00
  • Trust


Product Description

35W USB DC load resistance electronic adjustable constant current industrial discharge 18650 resistance battery capacity tester

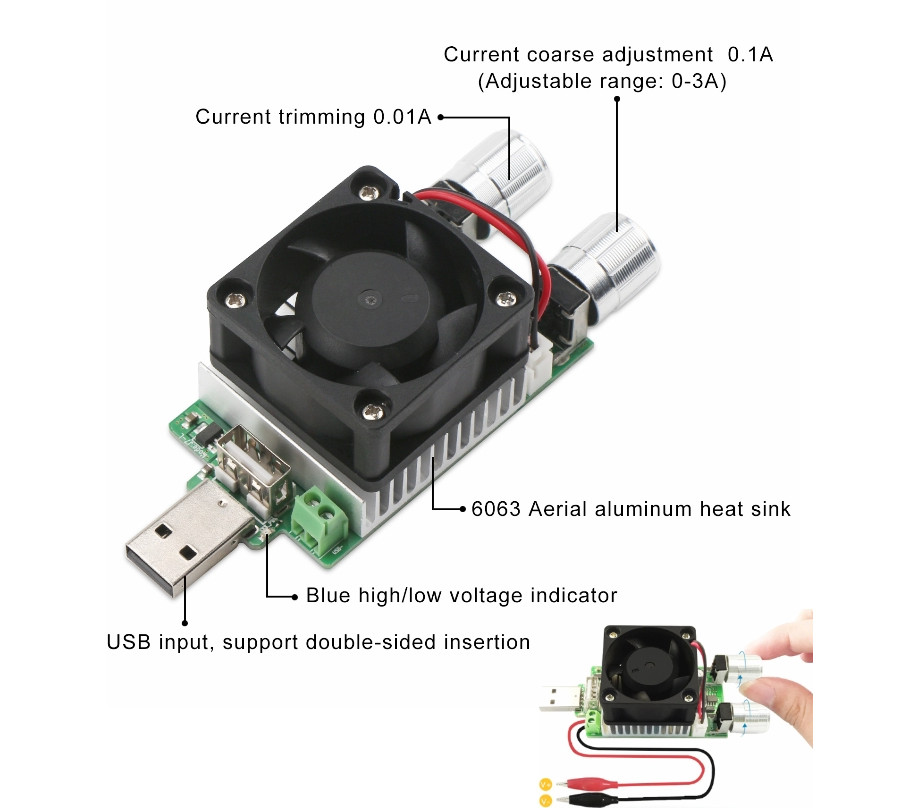

This is a device used to simulate an electrical load, usually for testing purposes. This discharge tester is used for testing a battery or power bank. It is easy to operate and can test battery within the range of 3 V ~ 21 V. It is designed with an aluminum heat sink and a fan for better heat dissipation, which will start automatically when the temperature exceeds 55 ° C and stops when temperature below 45 ° Features: There are 2 adjustment buttons, a coarse button and a fine button that can be used for fast and accurate current control. The input usb port is reversible for easy plug in which mean you don't have to worry about up or down position of it.

Designed with a high standard aluminum heat sink in the middle for better heat dissipation.

The 2900 rmp cooling fan will work when the temperature is above 55 ° C and stops when the temperature is below 45 °

This electronic load is supplied with two crocodile jumper wires for easy connection. Specifications: Voltage range: 3-21 V DC Input & Output Port: Crocodile clips + USB receptacle + reversible USB Constant Discharging Current: 0.1-4.5A adjustable (coarse adjustment knob for 0-3A, fine adjustment knob for +/- 0.2A) Current Error: Less than 2% + 3mA Constant Nominal Discharge: 35 W (if voltage is 21 V, constant discharge current must be less than 1.6A) Size: 10.6x4x3.2 cm / 4.17x1.57x1.26 inch





Input interface / output interface: plug-in interface + USB input + with trigger USB port

Operating voltage: DC3-25V (compatible with Qualcomm QC2.0 A and B protocol 5 v / 9 v / 12 v / 20 v)

Operating current: 0.1-4.5A continuously adjustable (coarse adjustable 0.1-4.5A, fine adjustable +/- 0.2A)

Current error: not more than 2% + 3mA

Working power: not more than 35 w (high voltage, than the current is less than 1.8A, if not excessive power overload discharge tube overload)

Fan regulator chip DC-DC chip switching frequency: 1.2 mhz

Dual input interface: USB input / 3.5mm pitch screw compression type terminal input

Power indicator: white LED

Fan speed: 4010 large format fan, speed 2900 / min

Control chip: HIDACE constant current chip

Potentiometer: metal material long-life potentiometer

Button Material: Alloy CND Computer chime on both sides of the metal button

Discharge tube type: imported voltage 100 v current 5A temperature-type discharge tube

Product Size: 105 * 40 * 32mm

Product weight: 70g

Total weight of the product: 105g
