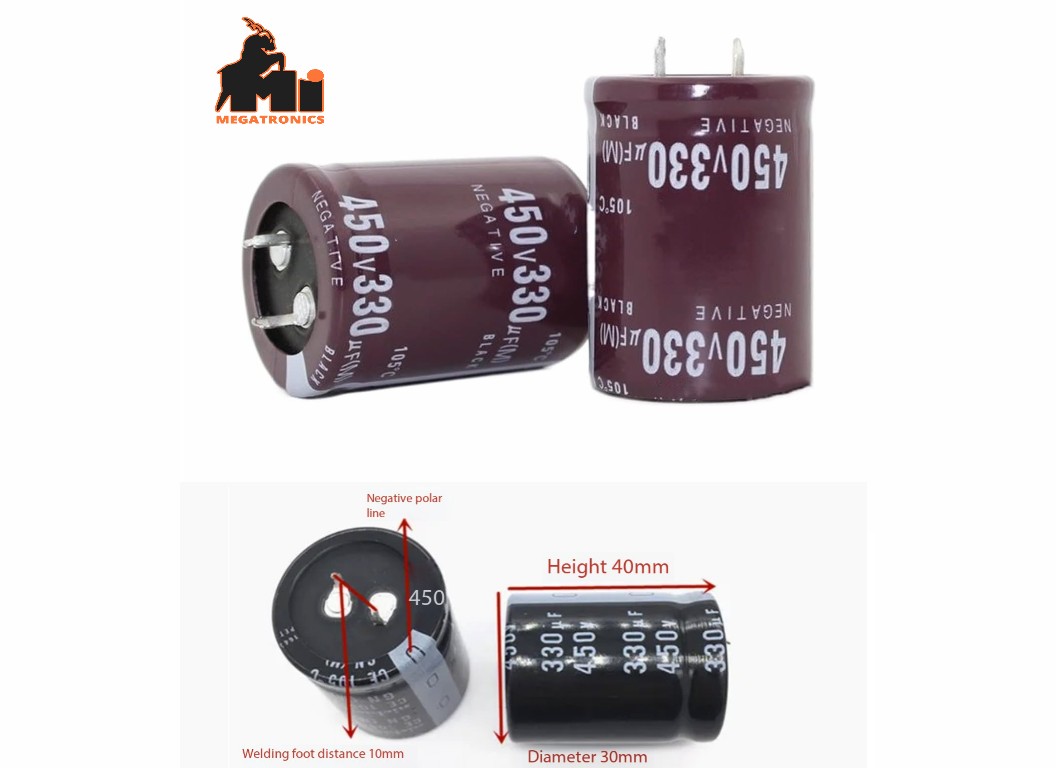

330UF 450V 30mm*40mm Electrolytic Capacitor Short Leg Control Circuit
Capacitance 330uF
Capacitor operating voltage 450V
Tolerance 20%
Case type diam.30x40mm
Terminal pitch 10mm
Electric mounting through-hole (THT)
Operating temperature -40 to +105°C
Leakage Current: 3 uA
Load life 3000h
Certificates RoHS
This 330uf 450V DC Electrolytic Capacitor designed with high reliability and long life.
It also features high ripple current at high frequency and excellent smoothing ability.
These electrolytic capacitors offer a wide range of applications in the field of Power Supply, Audio Amplifiers, Hobby projects, etc.
An electrolytic capacitor defined as a type of capacitor that functions using an electrolyte.
This achieve a larger capacitance than other capacitor types.
These capacitors generally used in DC power supply circuits due to their large capacitance.
And small size to help reduce the ripple voltage or for coupling and decoupling applications
An electrolyte is essentially a liquid or gel containing a high concentration of ions.
Most of electrolytic capacitors are polarized, hence used only in DC circuits.
This indicates that the voltage on the positive terminal should be greater than the voltage on the negative terminal.
These electrolytic capacitors exist as either wet-electrolyte or solid polymer commonly made from tantalum or aluminum,
although other materials could also be used.
This 450V DC electrolytic made from Aluminium electrolytic capacitors, found in many applications like power supplies, computer motherboards and lots of domestic appliances.
