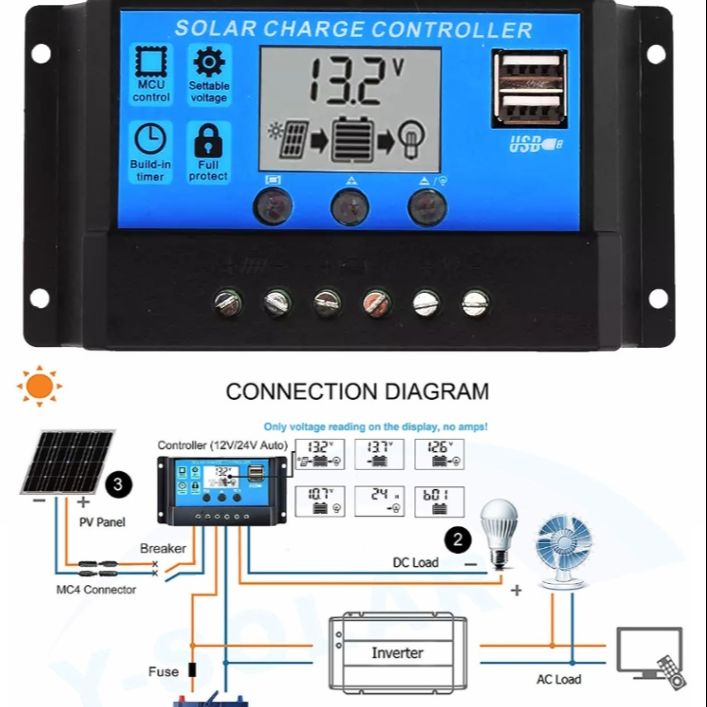

1. Build-in industrial micro controller.
-
2. Large LCD display, all adjustable parameter.
-
3. full 4-stage PWM cargo management.
-
4.Built-in short circuit protection, open circuit protection, reverse protection, overload protection.
-
5. Dual mosfet Reverse current protection, low heat production.
-
Rated charge current: 30A
-
Rated discharge current: 30A
-
Max. solar input: < 50V
-
Float charge voltage: 13.7V
-
Shutoff voltage of discharge: 10.7V
-
Recovering voltage of discharge: 12.6V
-
Output power(dual USB): 5V/3A
-
Standby current: < 10mA
-
Operating temperature: -35'C to 60'C
-
System voltage: 12V/24V (Auto)
-
Battery Option (GEL,LEAD-ACID,FLOODED,Lithium-ion LiFePO4)
-
Adjustable charge and discharge parameters
-
Integrated 3 steps PWM charging management
-
Safe protections: Short circuit/open circuit protection, overcurrent protection, reverse polarity protection
-
Dual MOS anti-backflow circuit, low heat dissipation
-
Can charge for cell phones or tablet PCs via USB port
