220V PIR Sensor Switch IP64 Outdoor Waterproof Infrared Motion Sensor Time 180° 12M settings Sensing
HIGH SENSITIVITY: The sensor is a new type of energy-saving lighting switch, using high-sensitivity detectors, integrated circuits and mount technology, and practical.
MOTION SENSOR: The inductive switch uses human body motion infrared as the control source.
When a person enters the detection field, it will immediately activate the controlled load.
LIGHT-CONTROLLED INDUCTION: The motion sensor can automatically identify day and night.
The wide detection range consists of up, down, left and right service areas.
DELAY FUNCTION: The motion sensor will automatically turn on the light when it detects motion, and turn it off after a pre-selected time delay (5s to 6 minutes).
EASY TO INSTALL: The LED infrared sensor is automatic, convenient, and practical.
This is a 220V human infrared sensors, pyroelectric infrared technology,
the use of industrial district-level chip, intelligent control,
set energy saving, convenient and environmentally friendly one, very convenient.
Specification :
The main technical parameters :
Detection range : 180°
Operating voltage : 220V
Detection distance : 15m (24 ?) (adjustable)
Delay Time : 15 seconds to 7 minutes (adjustable)
Installation height : 1.8m – 2.5m
Material : ABS
Dimensions : 60 × 47 × 156mm
Installation : open type, (hole 16mm) installation, adjusting for the next button.
Color : Black

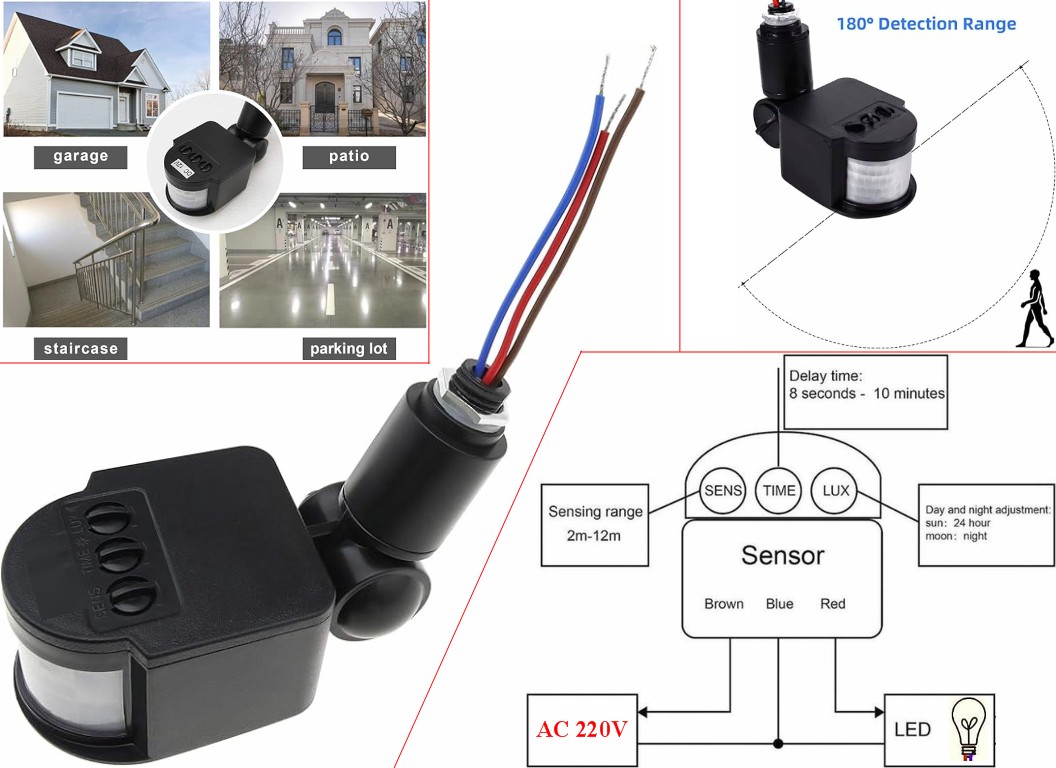

Connection Description:
N- Blue (zero line)
L- Brown (connected LiveWire)
Output – Red (sensor output lines)
Blue and brown input power
Blue and Red take the load (lamps).
Package includes :
1 x 220V human infrared sensor
