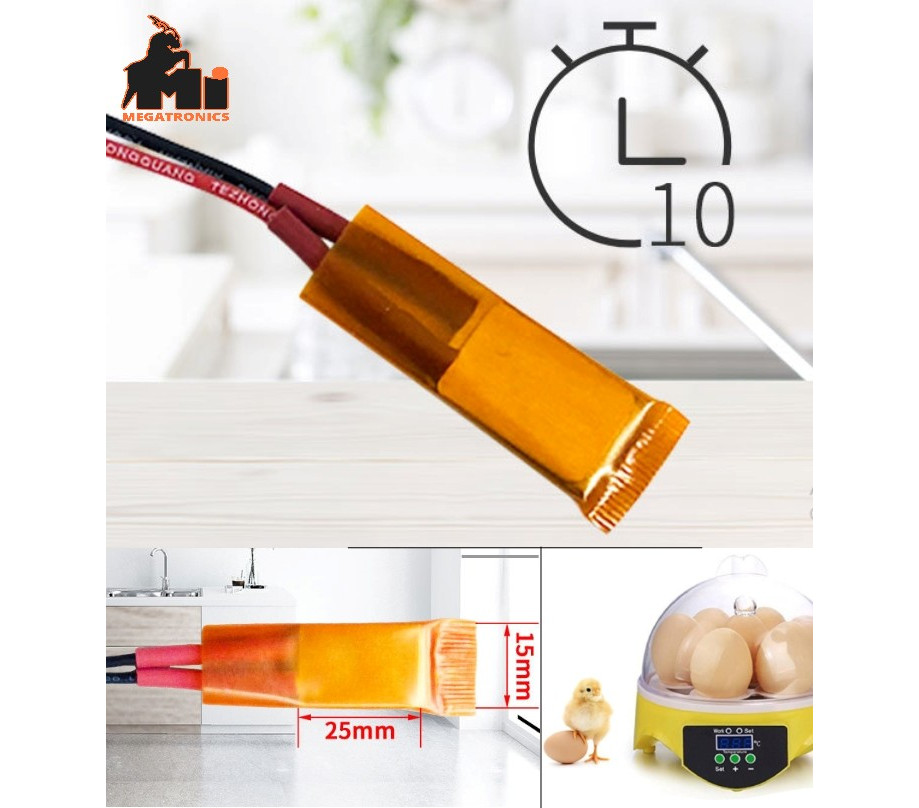

200c 220V PTC Insulated Heater MZ45-X15C1-220V
1. Rated voltage: 220V
2. Withstand voltage: <400V
3. Insulation withstand voltage: >3750V/5min
4. Appearance size: 25(±0.5)×15(±0.3)×3.5(±0.2)mm
5. Curie temperature of PTC heating chip: 215?±5? (R=24?)
6. PTC heating chip surface temperature: 230?±5? (R=24?)
7. Dry firing temperature of heating element surface: 200?±5? (R=24?)
8. Resistance range: 1~4K Ω (no power, R=24?)
9. Impact current: <1.5A
10. Power range: 8~60W
11. Dry burning power: 12W±40% (R=24?)
12. Silicone casing: length>2cm; temperature resistance>300?
13. Silicone wire: one red and one black; length 150±5mm, stripping 10mm at the end; temperature
resistance >200?
The PTC part is used for heating air or solid. It's meterial has a characteristic that it is constant temperature on the surface. The power consumption of the heater is not fixed. The better the heat dissipation, the greater the power.
Advantage:
Safety, surface insulation heat up quickly, long service life constant temperature high power, easy use, high reliability.?
Application:
Heater for water, incubator, cup, gas, application as hair straightener, yogurt maker, instrumentation dehumidification, chocolate extrusion, coffee maker.car and components preheating.?
