1R 100W Watt Resistor Aluminum Wirewound Golden 1 ohm Resistor
A wirewound resistor is an electrical passive device that limits or restricts current flow in a circuit. Wirewound resistors are constructed using a conductive wire. The conductive wire is then wound around a non-conductive core. The conductive wire can be made of varying alloys and thickness to control the resistance value. Wirewound resistors are typically used in high power and industrial applications such as circuit breakers and fuses.
Model: RX24-100W
Resistance Value: 1 ohm
Technics: Wirewound
Power Rating: 100W
Resistance Tolerance: 5%+/-1O

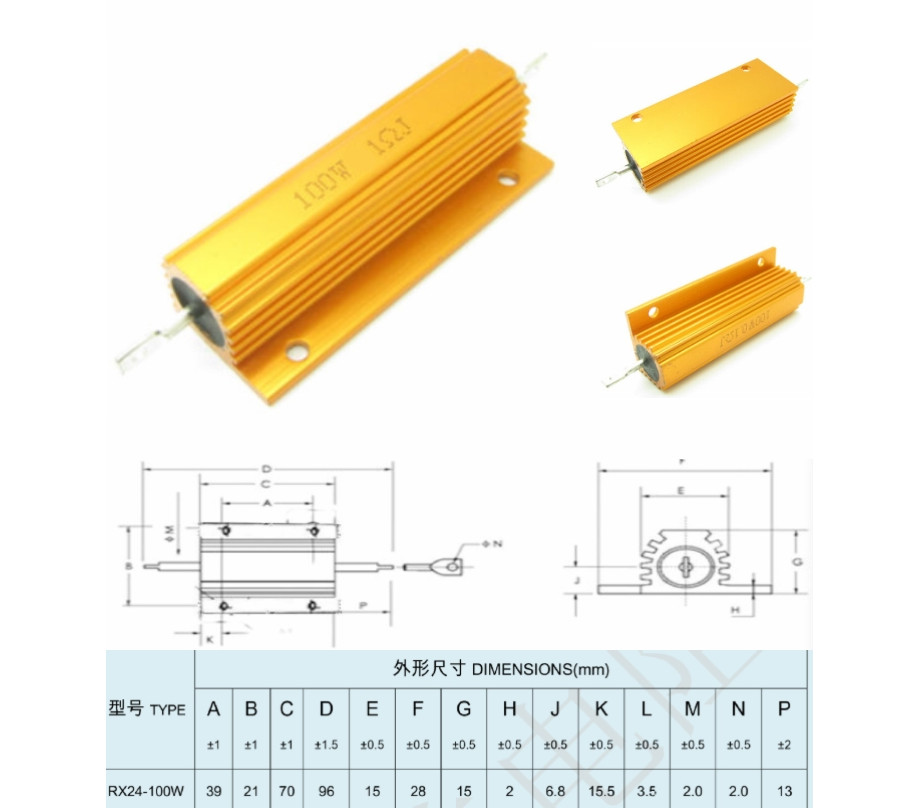

Body Size: 70mm x 28mm x 15mm
Color: Gold Tone
Net Weight: 35g
