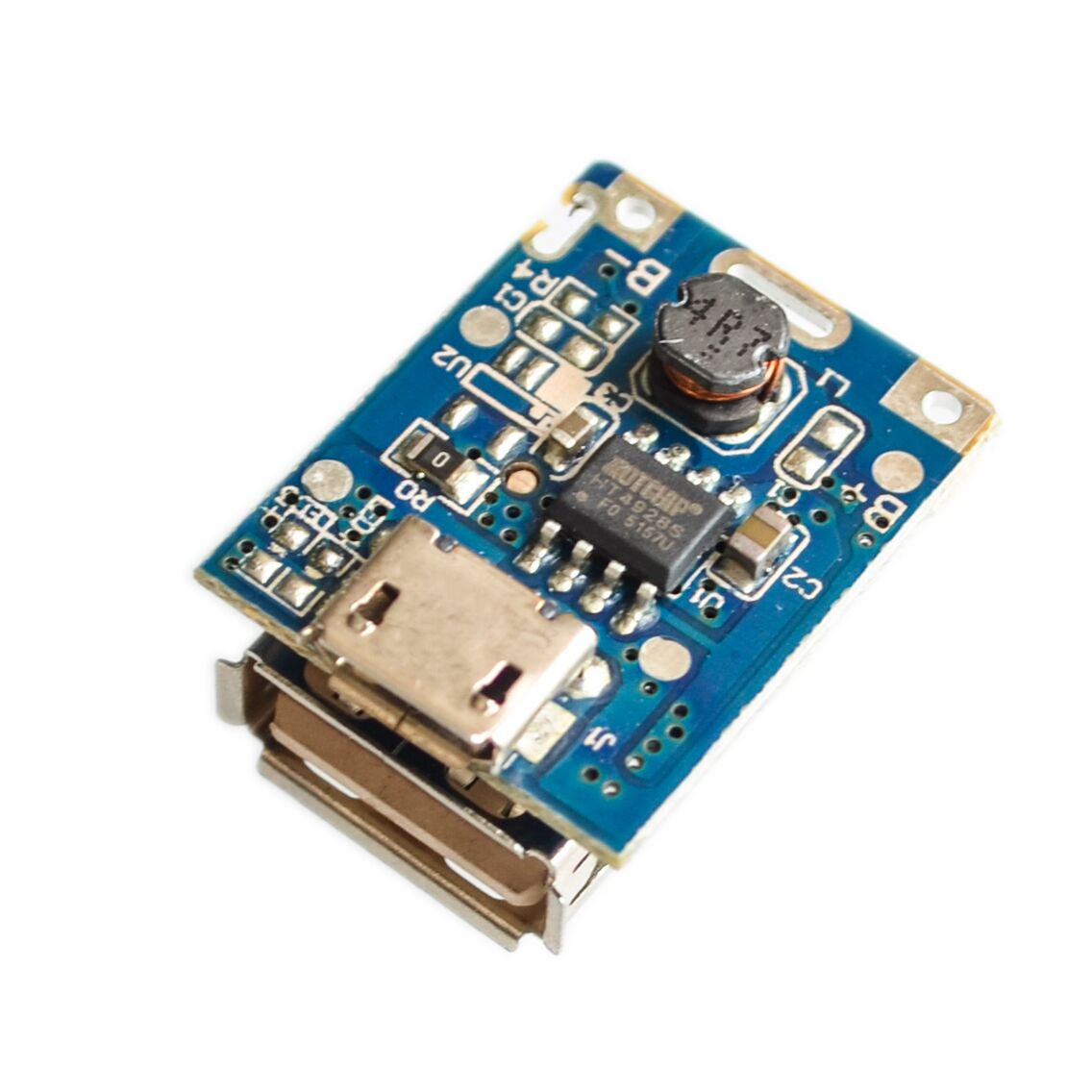

Product description
Brand Name : IS
Supply Voltage : 3.7V~5.5V
Model Number : Charger Module
is_customized : Yes
Type : Logic ICs
Operating Temperature : -30-85 celsius
Condition : New
Application : Power Modules
Charging Current : 1A(max)
BAT Discharging Stop Voltage : 2.9V
Discharging Efficiency : 85%
Product Introduction: 1.Input Voltage:3.7V~5.5V 2.Charging Current:1A(max) 3.Output Current:1A(max) 4.Output voltage:5V 5.BAT Discharging Stop Voltage:2.9V 6.Discharging Efficiency:85%(input 3.7V output 5V/1A) Features: 1.Charging and discharging indication 2.Internally installed charging and discharging power MOS 3.Preset 4.2V charging voltage, precision ±1% 4.Max 8uA standby current 5.Integration charging management and discharging management 6.Intelligent temperature control and over temperature protection 7.Integration output over voltage protection,short circuit protection,overload protection 8.Integration overcharging and over discharging protection 9.Support trickle mode and zero voltage charging
When charging :red light flashing Full charged :red light light for a long time
