 15A 400W DC-DC Step up Boost Converter Constant Current Power Supply Module



 15A 400W DC-DC Step up Boost Converter Constant Current Power Supply Module

Product Details
  • SKU: 400BCC-D69S8
  • Brand: Megatronics.pk
  • Stock: Out of Stock

Product Pricing
PKR750.00
QTY: Pre Order
  • Trust


Product Description

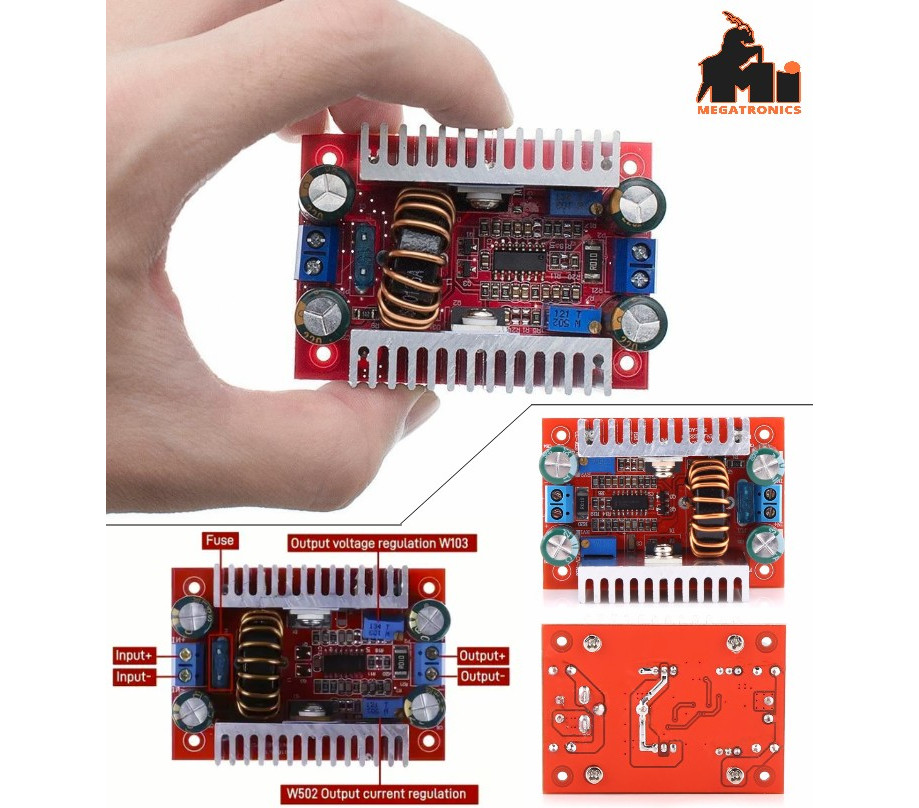

400W DC-DC Step-up Boost Converter Constant Current Power Supply Module

Module properties: Non-isolated boost module (BOOST)

Input voltage: DC8.5V-50V

Input current: 15A (MAX) If it exceeds 8A, please increase heat dissipation

Quiet working current: 10mA (When the output voltage is increased from 12V to 20V, the higher the output voltage, the higher the static current will be)

Output voltage: 10-60V continuously adjustable (the default output is 19V. If you need other voltages, please inform the shopkeeper.)

12-80V fixed output

Output current: 12A MAX. If it exceeds 7A, please increase heat dissipation (related to the input and output voltage difference. The larger the voltage difference, the smaller the output current)

Constant current range: 0.2-12A

Output power: = input voltage * 10A, such as: input 12V * = 60W, input 24V * = 120W,

Input 36V*=180W, Input 48V*=240W,

Working temperature: -40~+85 degrees (please increase heat dissipation when the ambient temperature is too high)

Working frequency: 150KHz

Conversion efficiency: 96% (efficiency is related to input and output voltage, current and pressure difference)

Overcurrent protection: Yes (when the input exceeds 1, the output voltage will be automatically reduced, with a certain range of error.)

Input reverse protection: None, (If you need a higher reverse current, please connect a diode in series with the input)

Installation method: 4 2.5mm screw holes

Wiring method: Wiring output

Module size: Length 67mm, width 48mm, height 28mm

Module weight: 60g
