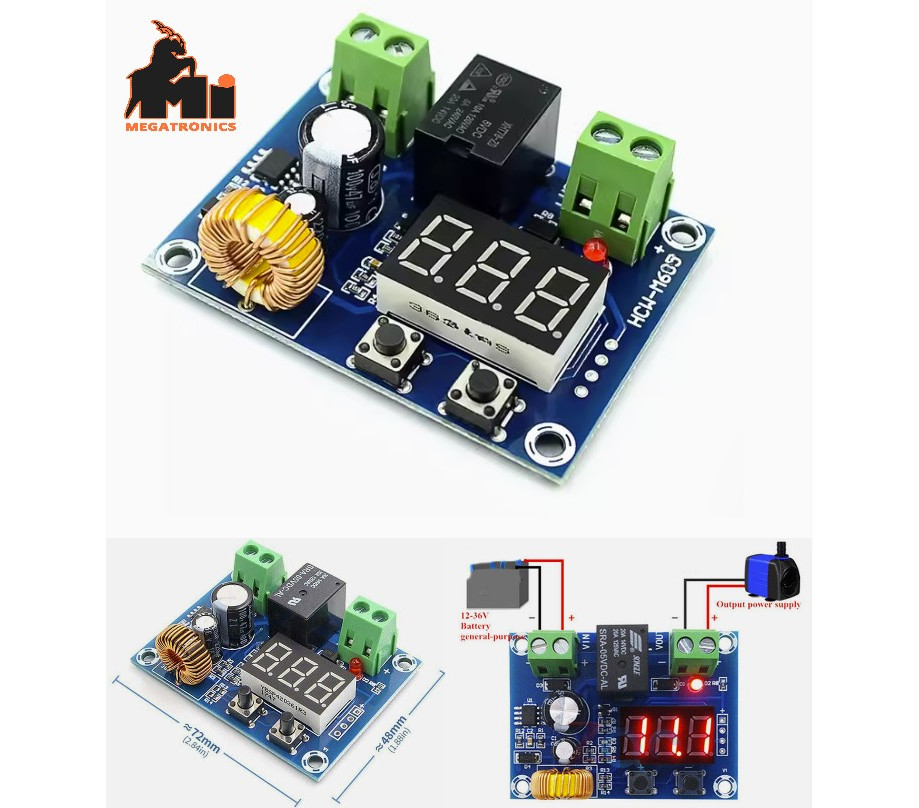

2V-36V XH-M609 DC battery over-discharge voltage protection disconnect undervoltage low power disconnect
1. Name: Battery over-discharge protection module
2. Model: M609
3. Input voltage: DC 12-36V
4. Output voltage is equal to input voltage
5. Display accuracy: 0.1V
6. Control accuracy n: 0.1V
7. Voltage error: +/-0.1V
8. Applicable range: 12-36 lithium battery
9. Product size: 57*42*19mm
-Programmable battery low voltage lithium ion battery for DC 12-36V lead acid battery and cut-off switch. This is a protection switch module, the batteries themselves are not included.
-On-board momentary push button to set low voltage disconnect parameter and 3-digit red LED display
-When the battery voltage reaches the set value, the module will automatically cut off the load to avoid battery discharge to extend battery life
-The display is accurate, the switch module is near the minimum voltage quickly to turn on and off; Settings are stored non-volatile, can continue to adjust when power off.
