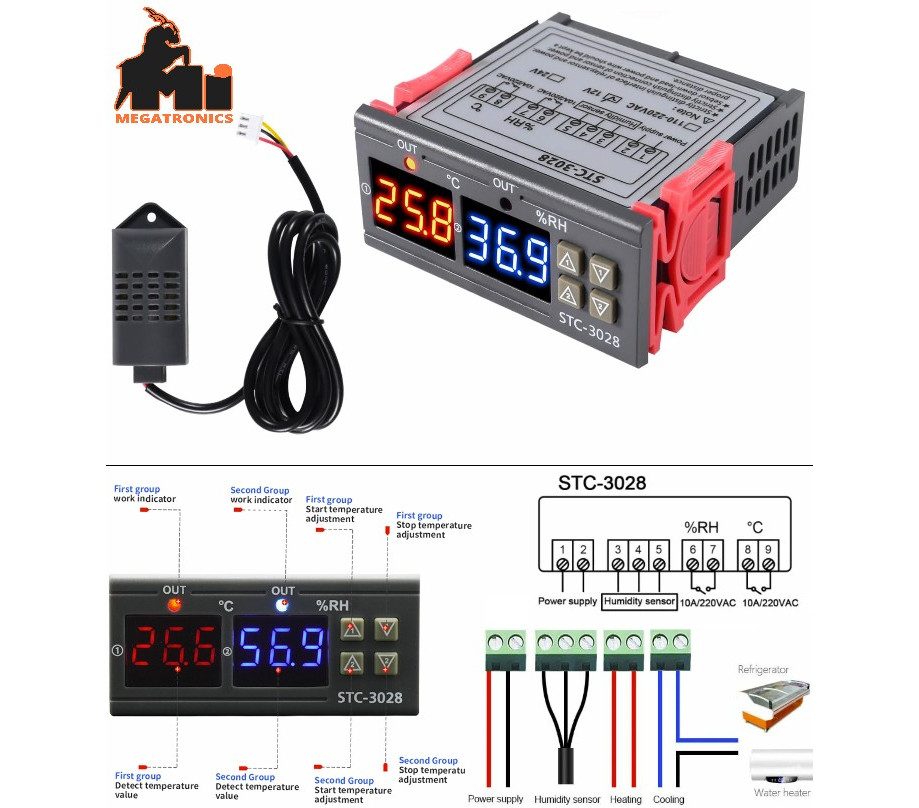

220V STC-3028 Thermometer Hygrometer controller SHT20 Temperature Humidity Sensor Dual LED Digital
A simple digital thermostat with two output relays allows temperature control from -50°C ~ 110°C with 0.1°C resolution. For example, heating can be connected to one output and cooling to the other.
Both heating and cooling will then maintain the set temperature on the thermostat.
The thermostat includes a temperature sensor with hygrometer. The power supply is 230V AC.
The thermostat can control the temperature and humidity. Suitable, for example, for hatcheries and nurseries.
Power consumption: 3W
Temperature range: -50°C - 110°C (0.1°C resolution)
Hygrometer range: 0 - 100%RH (0.1RH resolution)
Temperature measurement accuracy: ±1%
Humidity measurement accuracy: ±0.1%RH
Temperature sensor: resistive NTC, 10kΩ, 0.5%
Switching contact: 250V AC 10A (with resistive load!)
Relay contact type: switching
Operating temperature: 0 ~ 60°C
Display color: red (temperature), blue (humidity)
Dimensions: 75 x 34.5 x 85mm
Panel hole dimensions: 71 x 29mm
Weight: 142g
