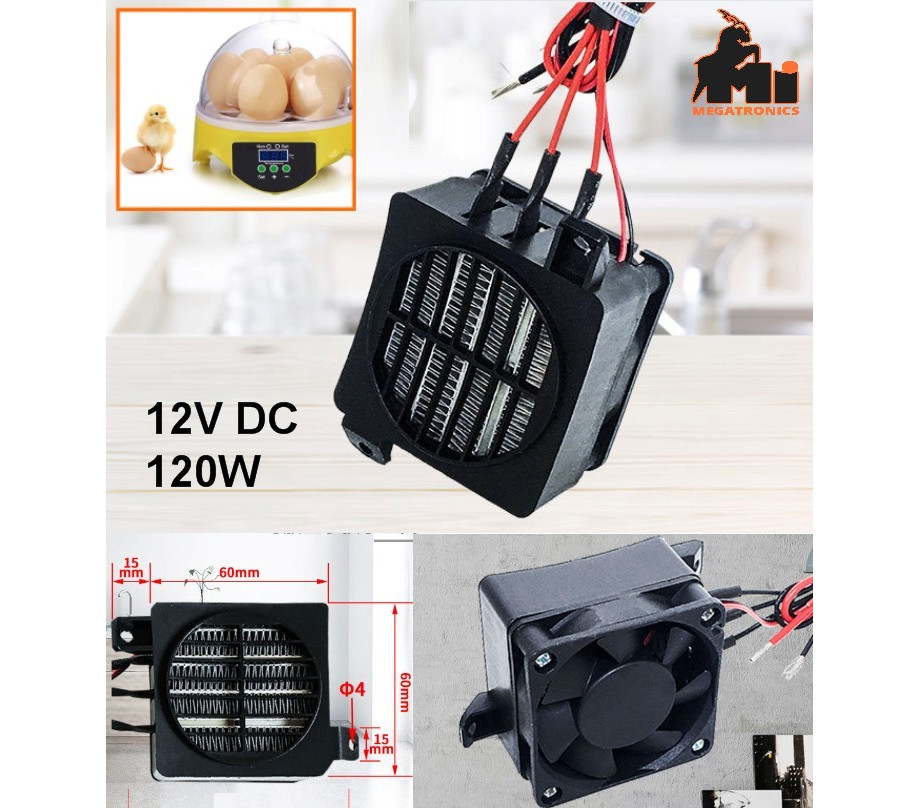

12V 120W fan PTC heating Element air heater incubator ceramic heater custom 90*60
Working voltage: 12V
Power: 120W
Appearance size: 90x60x42mm (including the total size of the mounting hole)
Installation hole distance: 86mm (installation hole diameter 4mm)
mounting hole size:f4mm
heat material: PTC Thermistor
heat methods: heat radiation by air flow
lead wire: high temperature line
the length of lead wires : 200mm
the length of bare wires : 10mm
surface insulate: No
use: this PTC part is used for heating air or solid. the PTC meterial has a characteristic that it is constant temperature on the surface.
notice: the power is reference value. the better the dissipation is, the bigger the power is. In different working environments, power will have a plus or minus 20% tolerance.
If you have strict requirements on power accuracy, this product is not suitable for you.
advantage
Safety
Heat up quickly, long service life.
self-control temperature
small sound
applications
Incubators
Electric Heater
General electric appliance
Air curtain machine
PTC Insulative corrugated heater(PTC Air heater insulator,PTC Heater for warm air-conditioner) is a kind of large power Non-Surface-Electrified PTC heater with wind blowing.PTC element is fixed in aluminium tube and keep insulated with the aluminium tube.
