3A Adjustable PWM DC Motor Speed Controller Forward Reverse Switch 6V to 28V
WM DC motor speed control switch 6V 12V 24V 3A switch with forward and reverse function
The 1203BB DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It provides a continuous current of 3A to your DC motor or other DC load. Besides, the circuit also includes a 3A fuse, with reverse connection of power supply and control the forward or reverse direction and the stop of DC motor by switch. It controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).It provides a continuous current of 3A to your DC motor or other DC load.
Specification:
Input Power Range: DC6V-28V
Maximum Continuous Output Current: 3A
Maximum Output Power: 80W
Duty Cycle Adjustable: 5%-100%
Features:
Control the forward or reverse direction and the stop of DC motor by switch.
Potentiometer with switch function.
The switch cable length 15cm.
Operating Instruction:
Before you attempt to wire the controller, make sure that the power is off.

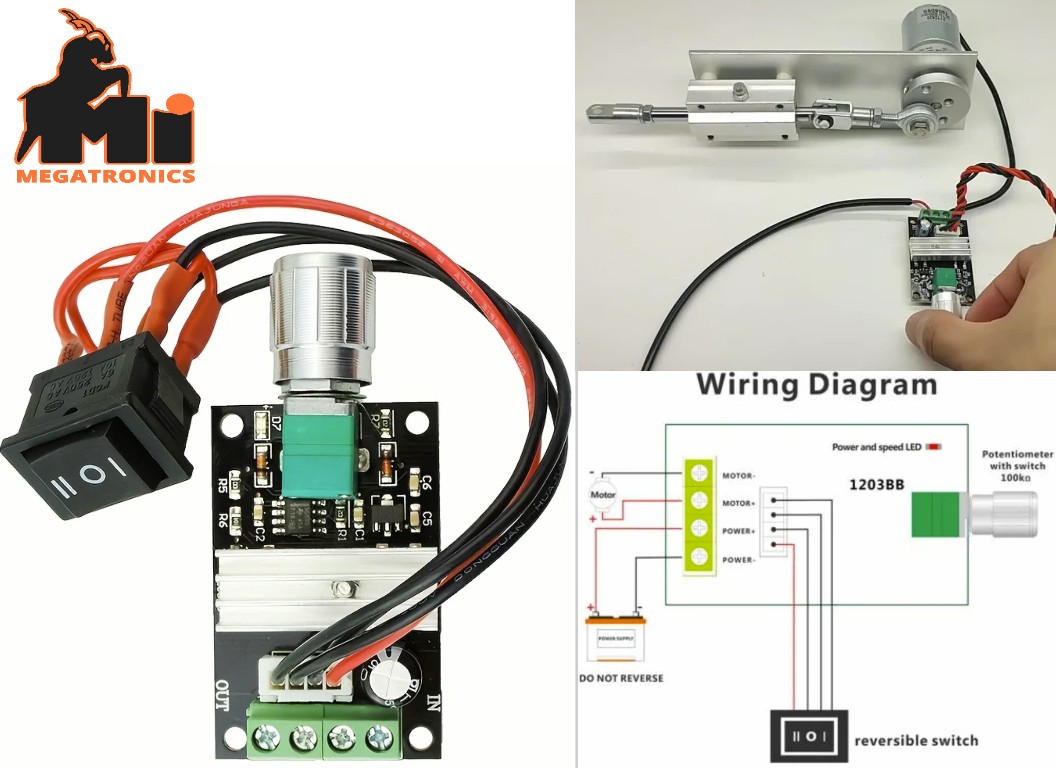

Connect wires refer to the wiring diagram.
Turn on the power, and adjust the potentiometer.
The LED indicates the power up and the speed of the motor.
1203BB DC Controller Motor Speed Controls the speed of an engine CURRENT adjusting Pulse-Width-Modulated (PWM).
The input power range and DC6-28V
Duty Cycle adjustable range and 5% -100%
control the forward or backward direction and the ‘engine stop switch from a CURRENT
Potentiometer with Switch Function
The switch cable length 16.5 cm / 6:49 “
ARTICLE size: 32 * 50 * 15mm / 1.25 * 1.96 * 0.59 “
Precise control over DC motor speed using Pulse-Width-Modulated (PWM) technology.
- Supports reverse direction operation and is equipped with a forward/reverse switch for easy speed adjustments.
- Built-in 3A fuse for added safety against overload or reverse connection.
- Ideal for various applications such as robotics, modelling, and electronic projects.
Specifications
- Power Mode: Room electrical/hard wiring
- Operating Voltage: ≤36V
- Input Voltage: DC 6-28V
- Maximum Current: 3A
Please Note*
This product is designed to operate within the specified voltage and current limits. Ensure proper connections to avoid damage, especially when reversing the power supply direction. Always double-check connections before powering on to prevent shorts and ensure smooth operation.
