12-36V 15A 500W high power brushless controller driver ESC speed regulation forward reverse
Product parameters:
Voltage input: DC 12V - 36V
Maximum current: 15A
Maximum power: 500W
High-power Hall-less brushless driver with wide voltage DC12-36V, maximum current 15A, and maximum power 500W.
It has good compatibility with most motors, but a few motors may not be fully compatible, so you need to test it yourself.
It is best to use the adjustable power supply current limiting mode to test whether the actual no-load current is abnormal to avoid burning the driver due to abnormal high power.
The driver supports forward and reverse switching and potentiometer speed adjustment. Potentiometers generally range from 10-50K and can also be used with a 5V PWM signal.

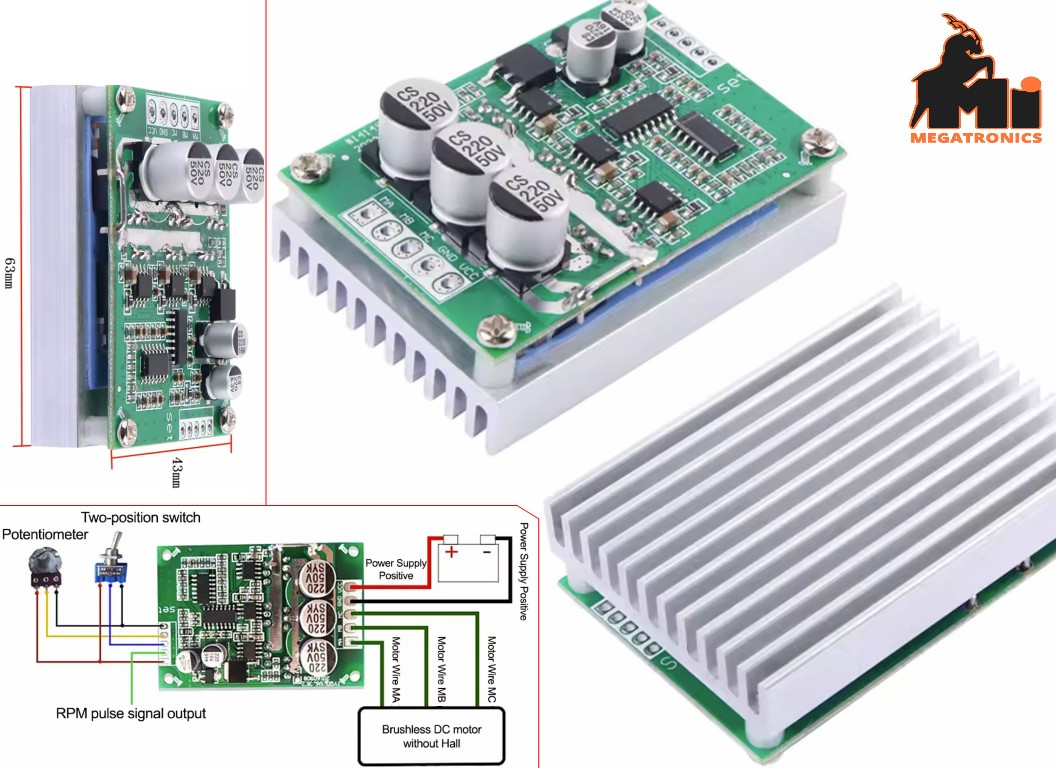

For specific definitions, please refer to the introductory diagram.
It is strictly forbidden to connect the positive and negative poles of the driver input power incorrectly.
Do not short-circuit the three-phase output UVW, otherwise the driver will burn.
The driver comes with an 18mm thick heat sink.
When used at high power, the actual heat generation should be determined. If the heat generation is large, a fan should be added for forced air cooling.
BLDC three-phase DC brushless with Hall 380W high power PLC brushless motor driver board motor controller
Note: This driver is a DC three-phase brushless control board that requires the motor to have Hall to work properly
The product is suitable for brushless DC motors with Hall effects up to 120 degrees of electrical angle.
New upgraded BLDC wide voltage 6-60V high power 380W DC three-phase brushless Hall effect controller, newly added PLC 0-5V analog control PWM duty cycle control
Warm reminder: The product is independently developed by the company, and the circuit schematic is not provided.
Please understand. The key IC of the anti-copy board has been polished. Please do not buy if you mind.
Interface Description:
1.MA MB MC phase line output connected to the motor
2. 5V GND The motherboard comes with a 5V power supply (current does not exceed 30MA)
3. VCC GND Motor main power supply (external DC power supply)
4.SC speed pulse signal output
5 Forward and reverse control interface (can also be connected to an external switch)
6. VR speed control signal input (the board has a built-in potentiometer for speed control and can also be connected to an external 0-5V analog PWM duty cycle to support dual signal input speed control)
7. Ha Hb Hc +5V GND Hall signal power supply input.
Generally, motors with Hall signals have 5 corresponding wires.
