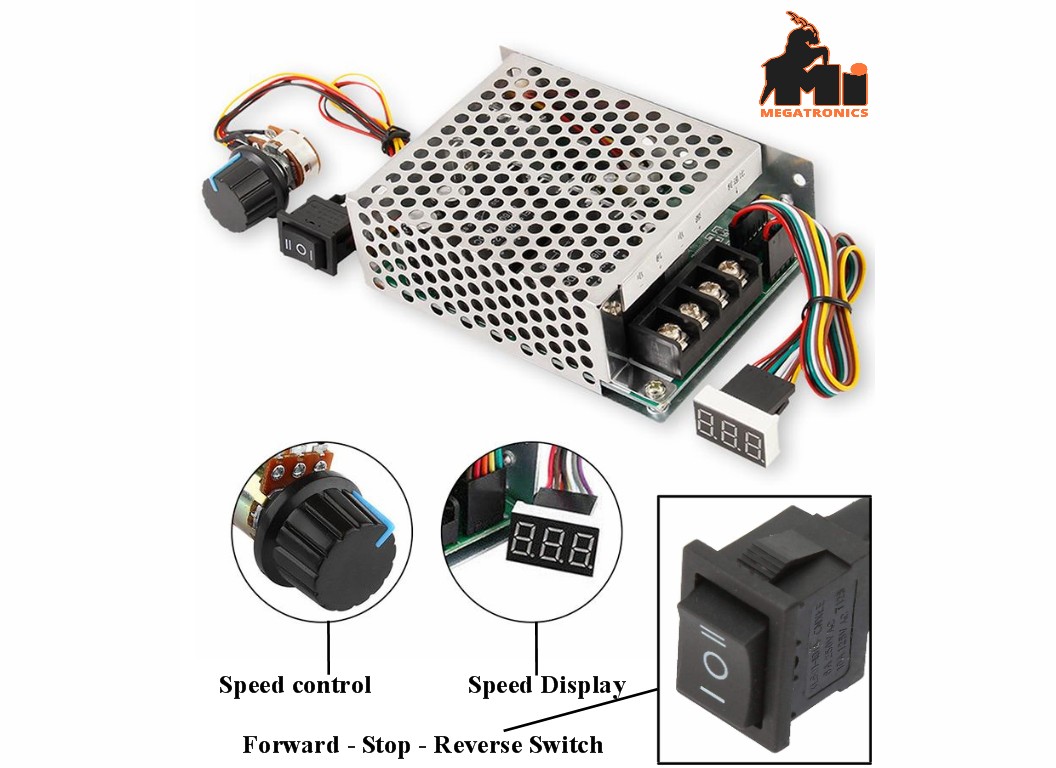

10V to 55V 40A Motor Speed Controller Bidirectional Forward Stop Reverse DC Motor Governor with Digital Display Tachometer
With screw terminals for easy wiring of motor and power supply.
3 digit digital tube display helps you adjust the engine speed accurately.
Strong metal shell provides better protection to internal circuit board components.
With digital display, digital display can show 0-100
Convenient speed regulation, with a switch potentiometer
Support positive and negative rotation
Screw terminal wiring, easy to use
Compact appearance, size only 110mm * 78mm * 38mm
Tachometer speed display
Forward, stop, and reverse function switch
Input voltage: DC10-55V (equal to the rated motor voltage)
Output voltage: linear under load
Output current: 60A
Continuous current: 40A
Supported motor: DC brush motor
Speed control mode: potentiometer (linear).
Speed range: 0-100%
Control frequency: 15 kHz
Button Features: 100K (with switch)
Attention:
The digital display only shows 0-100
The digital display only shows the percentage of the full speed of the motor, not the actual speed of the motor.
Input voltage must be divided into positive and negative.
The input voltage must be equal to the rated voltage of the motor, not 220V AC.
The input voltage should be equal to the rated voltage of the motor within 10-55V DC.
Package Content:
1 x DC Motor Speed Controller
