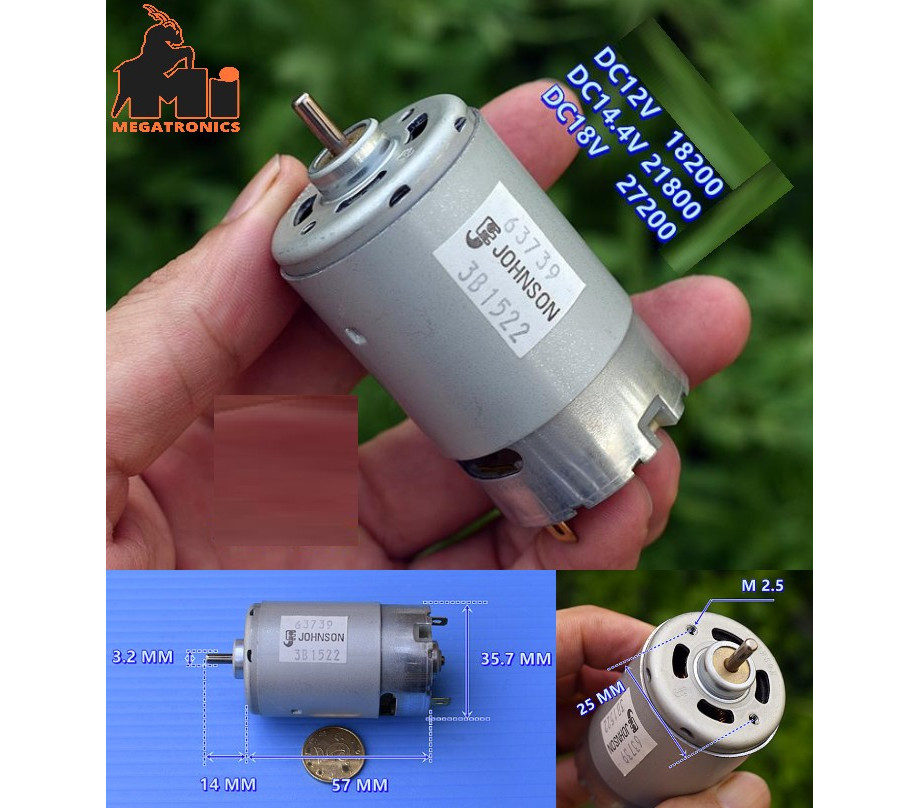

100W 550 powerful motor DC 12V high speed 18200 rpm high power
The very violent Johnson 550 high-power motor, its applicable voltage is DC 12V-18V, the speed is 18200 rpm-27200 rpm, the working current reaches 10A, the stall current reaches 80A, and the power is about 100W.
It is widely used. , Commonly used in hand drills, electric gardening tools, air compressors, children's electric cars ...... and so on. Also suitable for models powered by modified motors.
Motor weight: 217 grams
Applicable voltage: DC12V-18V
Voltage: DC12V
No-load current: 1.3 A
No-load speed: 18200 RPM
Voltage: DC14.4V
No-load current: 1.35 A
No-load speed: 21800 RPM
Voltage: DC18V
No-load current: 1.8 A
No-load speed: 27200 RPM
Note: This is a 550 motor with high power density. It is normal for it to heat up. Please pay attention to the heat dissipation environment. There are also high-power lithium current power supply for this type of power tool motor. If it is powered by a switching power supply, please Note that the current of the power supply is preferably more than 20 A, the bigger the better, if the current is too small, the power and torque of the motor cannot be exerted, or even cannot be started. Another point, the 550 motor with high power density is not suitable for continuous work for a long time.
