Voltage: 5V
-
Power indicator light, the output signal LED indicating lamp.
-
TTL level output, TTL output signal for low level drive capacity of around 100MA, can directly drive the relay, a buzzer, a small fan, etc..
-
Sensitivity adjustment via potentiometer
-
No rain when the LED light output is high, the output level, go up, LED bright.
-

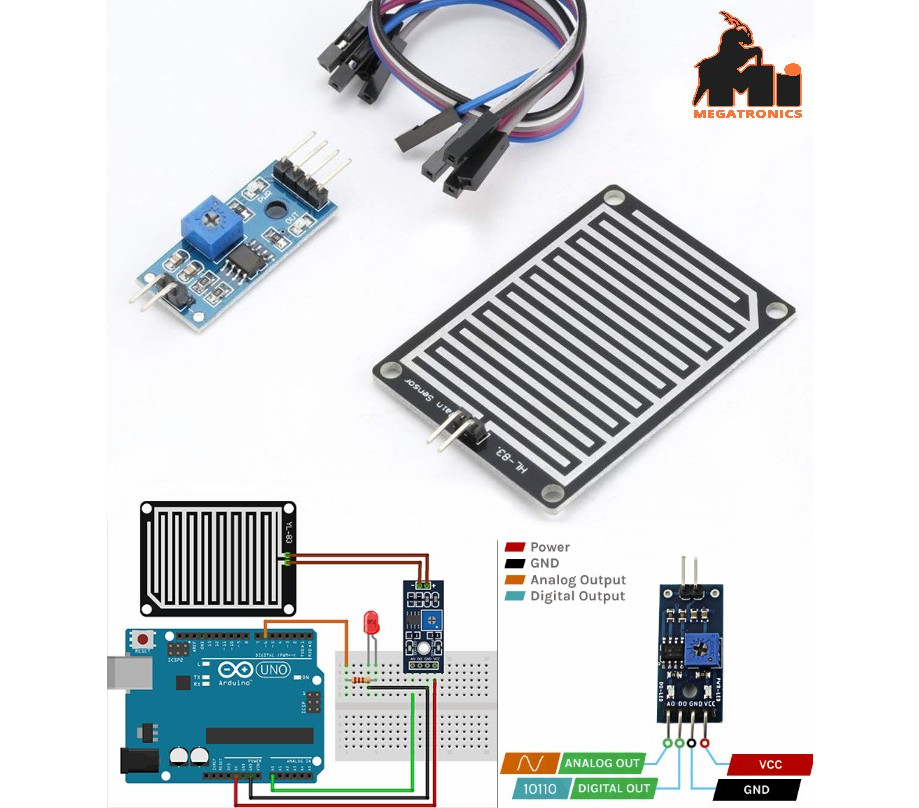

The board and the control board is separate, convenient wire.
-
A large area of the board, more conducive to detect the rain.
-
The board is equipped with a positioning hole to facilitate installation
-
Control panel board size: 3*1.6 MM
-
A large area of raindrop detection board 5.4*4.0 MM
-
Connect cable: 200MM
-
Connected to 5V power supply lights, induction board did not drop, DO output is high, the switch indication lamp is off, drop a drop of water, DO output is low, the switch indicator lights,
-
Brush off the water droplets, and restored to the state, output high level
