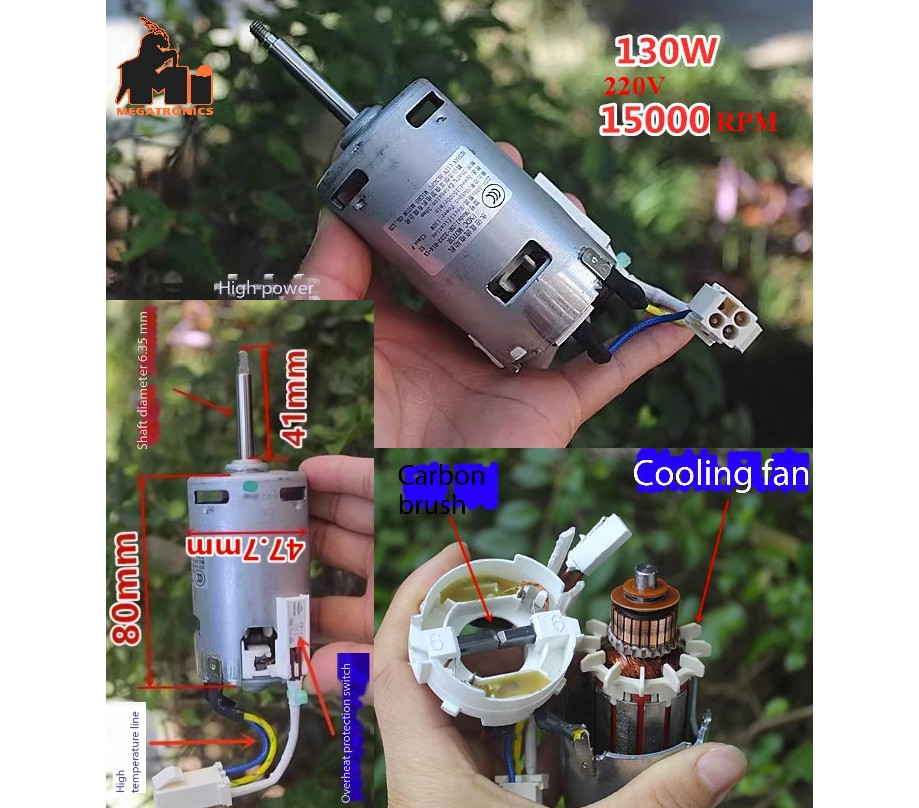

permanent magnet DC motor 130W 220V 15000 rpm pure copper wire wind turbine
motor has a pure copper coil with an overheat protection switch, high power and high speed, and can be driven after AC 220V rectification.
This motor is also very useful as a DC wind turbine.
Motor parameters:
Rated voltage DC 220V (Can be used with AC 220V just connect a Bridge rectifier)
No-load speed 15000 rpm
Rated power 130W
Weight 0.51kg
Parameters as wind turbine generator:
Speed 340-3200 rpm
Output voltageAbout 5-48V
Output power About 3-30W (the higher the output voltage, the greater the power)
