Manufacturer Part Number

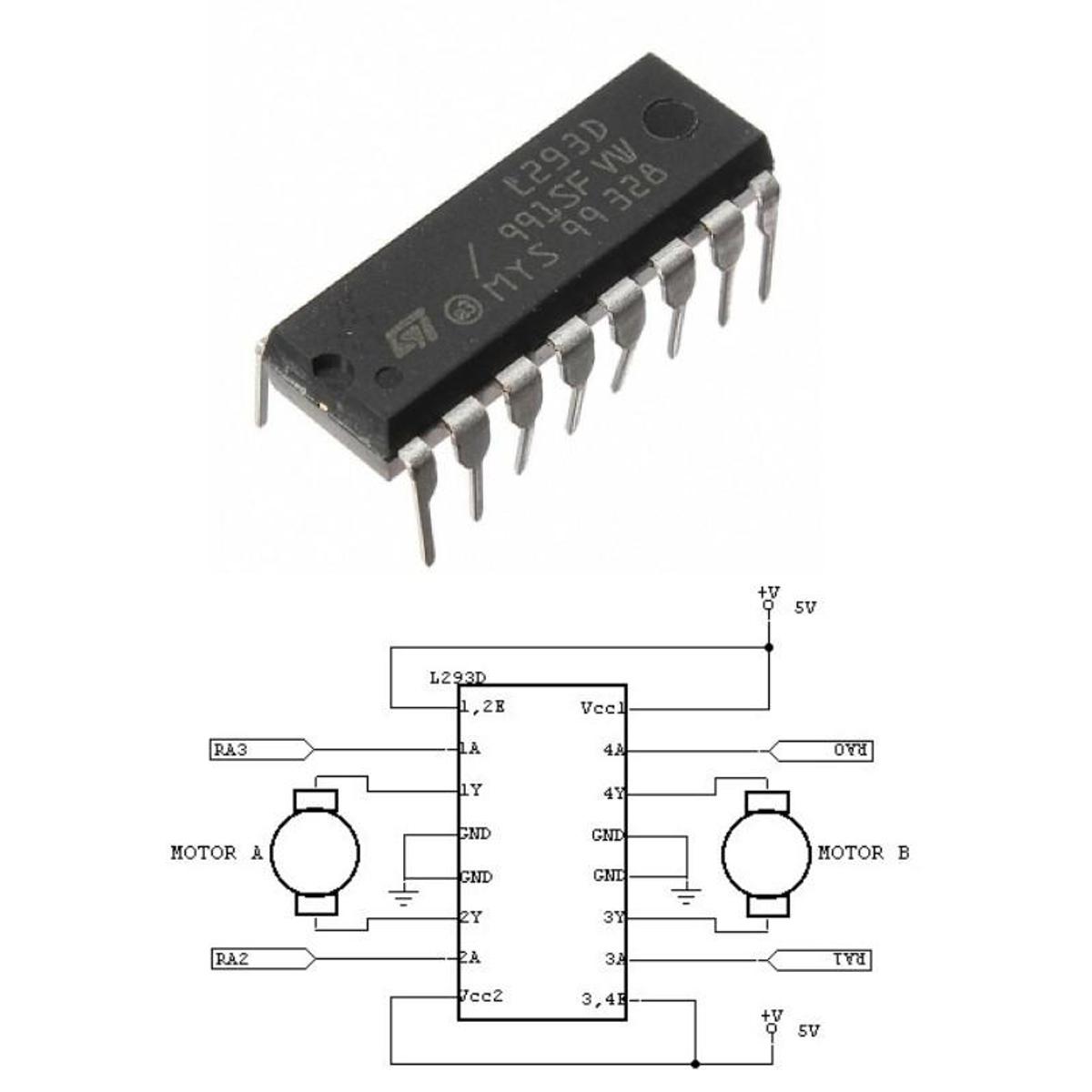

L293D
Description IC MOTOR DRIVER PAR 16-DIP
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Standard Package 25
Category Integrated Circuits (ICs)
Family PMIC - Motor Drivers, Controllers
Series -
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology -
Step Resolution -
Applications General Purpose
Current - Output 600mA
Voltage - Supply 4.5 V ~ 36 V
Voltage - Load 4.5 V ~ 36 V
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-PowerDIP
Online Catalog Drivers
