Power supply voltage:DC4.5-6V (micro USB interface)
Working current: less than 70mA
Discharge voltage:1.00V-15.00V , resolution 0.01V
Termination voltage range:0.5-11.0V
Supported by current::MAX.3.000A, resolution: 0.001A
Voltage measuring MAX. error:1%+0.02V
Current measuring MAX. error: 1.5%+-0.008A
MAX. battery capacity :9999Ah (1Ah=1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX

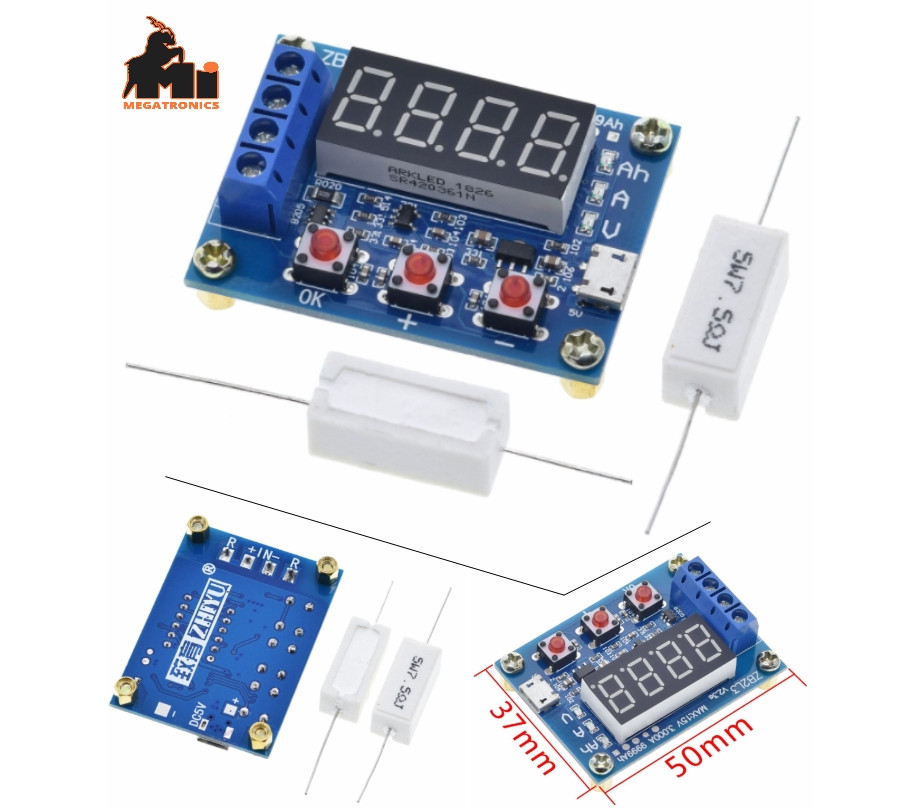

Circuit board size: 5X3.7cm
Size:5*3.7*1.7cm
Color: blue
Features:
Battery capacity tester discharge type 1.2-12V external load capacity of the battery and other tests.
Maximum support 15V 3A discharged through the discharge voltage and current, it does not discharge.
Maximum capacity statistics support 9999Ah (9999000mAh).
