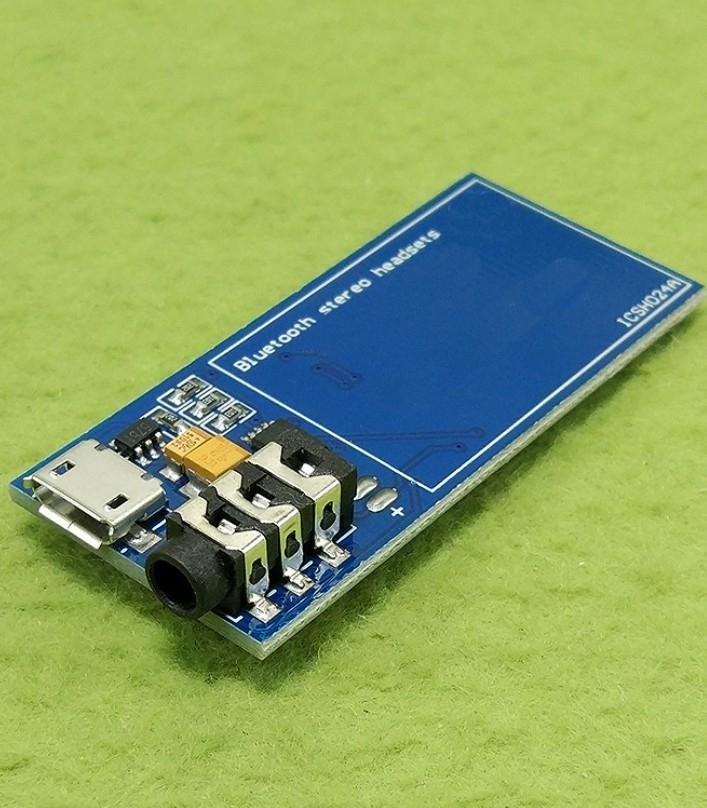

Features
1). High integration, low cost, low power consumption
2). Comply with Bluetooth2.0 specifications
3). Support A2DP V1.2 , AVRCP V1.4 Profiles
4). Integration of the EEPROM , configurable operating modes and parameters
5) stereo audio output can directly drive 40mW 32 [Omega] speaker
6). low voltage detection
2. Scope
1). Bluetooth stereo headset
2) Bluetooth stereo
3. Parameter
1) .USB charge voltage: 4.2V ~ 9V
2). USB charge current: 400mA
3) .xs-3868 power supply voltage: 3.6V ~ 4.2V
. 4) Play music Current: 80MA (the MAX)
5). belt machine current: less than 1MA
. 6). module size: 49 * 22mm ( without welding XS-3868) , 54.5 * 22mm ( welding XS-3868)
