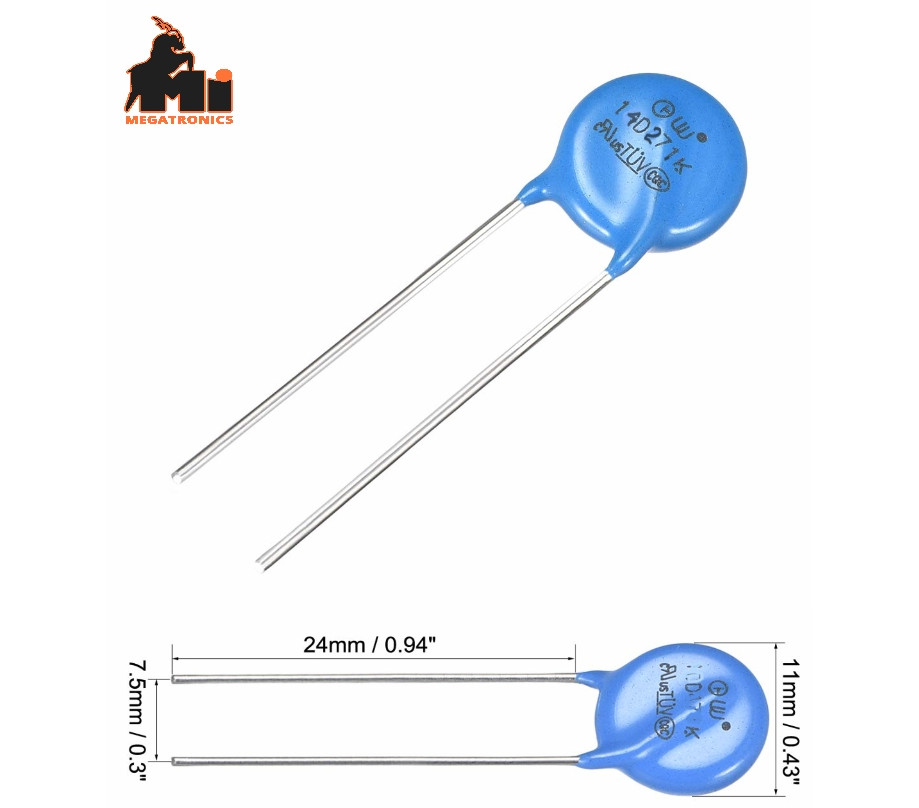

Varistor Voltage Dependent Resistor AC 270V 14D271K Radial Lead Disc
Varistors are made of semiconductor ceramic materials composed mainly of zinc oxides. They have a non-linear resistance that changes depending on the applied voltage. It has a small size, high current capacity. And high protection level.
Model: 14D271K
Max. Allowable Voltage: AC 175V; DC 225V; Varistor Voltage: 270V ±10%
Max. Clamping Voltage (8/20 μS): 575V; Max. Clamping Current (8/20 μS): 25A
Max. Peak Current (8/20 μS) : 2500A
Rated Power: 0.4W; Max. Energy: 70J
Typical Capacitance : 259pF (1kHz)
Fdatures
Wide voltage range (18V~1800V)
Excellent non-linearity and protection level
High flow rate
Fast response time (≤ 20ns)
Recommended applications
Semiconductor Protection
Surge Protection for Consumer Equipment
Communication surge protection ?Measuring instrument or controller
Relay or electromagnetic valve for surge absorption
Operating Temperature Range : -40 to 85 ?
Storage Temperature Range : -40 to 125 ?
