T8 Anti Backlash Spring Loaded Nut 3D printer Trapezoidal Rod 2mm pitch
This Anti-Backlash Nut features a mounting flange with four un-tapped holes for M3 screws. It is intended for use with Tr8×8(P2) leadscrews, which are 8mm-diameter rods with four independent trapezoidal threads spaced 2mm apart. One full revolution of such a rod will result in a 8.0mm linear displacement of the traveling nut.

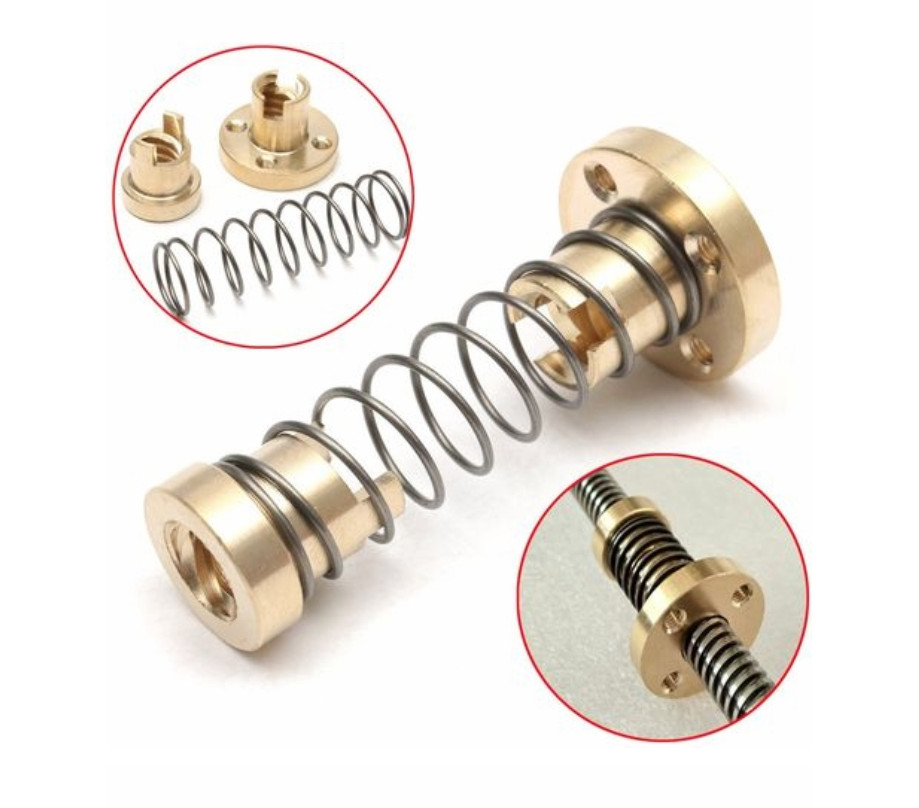

There are 2 brass threaded sections, one with a sleeve. The threaded sections are placed under pressure (to reduce backlash) by a spring.
Specifications:
Material: Brass
Color: Gold
Size: 50mm*22mm*14mm
Pitch: 2mm
Features:
T8 Anti-backlash nut for Acme threaded rod.
Aplication: 3D printer Reprap Z axis, CNC, etc.
