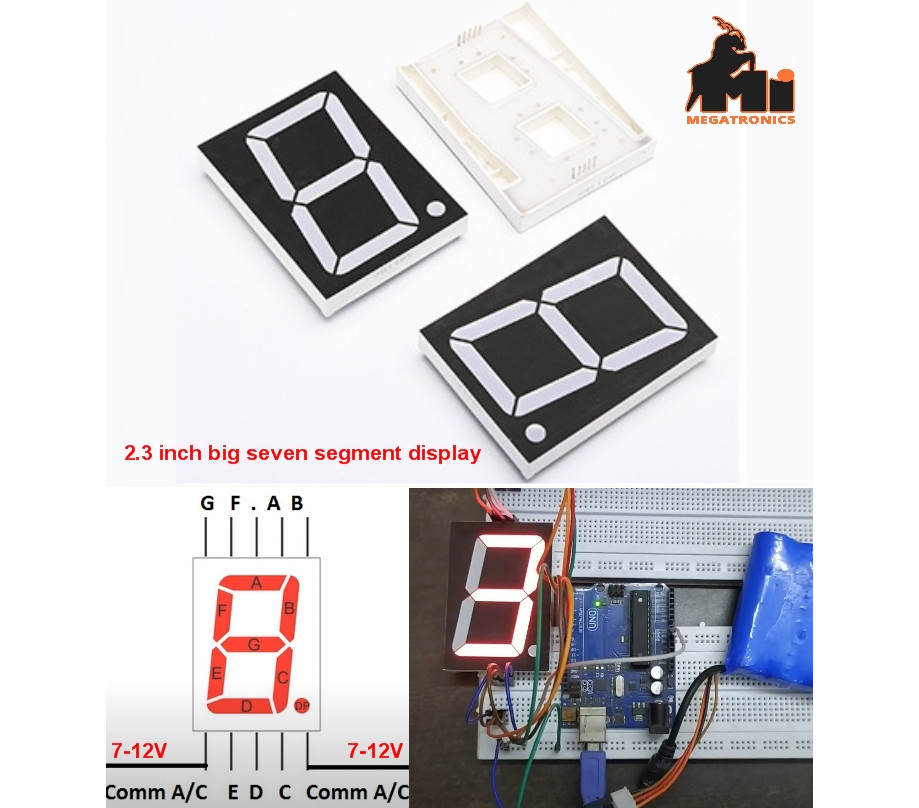

Single Red 2.3" 7-Segment Common Anode Display seven segment
Ideal for Queue Numbers, Scoreboards and Large Clocks
Bright Red LED's
Easy to Read
RoHS Compliant
Display
Digit Size: 2.3"
Material: InGaN
Emitted Color: Red
Dominant Wavelength:
Absolute Maximum Ratings
Reverse Voltage(Vr): 5 V
Reverse Leakage Current (Ir): 50 µA
Forward Current (If): 25 mA
Peak Forward Current (Ifp): 100 mA
Power Dissipation (P): 400 mW per Segment
Operating Temperature (Topr): -40°C to +80°C
Storage Temperature (Ttsg): -40°C to +85°C
Lead Soldering Temperature : 260°C
Electro-Optical Data (@ 20mA)
Forward Voltage - Typical: 12.8V
Forward Voltage - Maximum: 16.0V
Luminous Intensity - Typical per Segment: 30.0 mcd
RoHS Compliant: Yes
