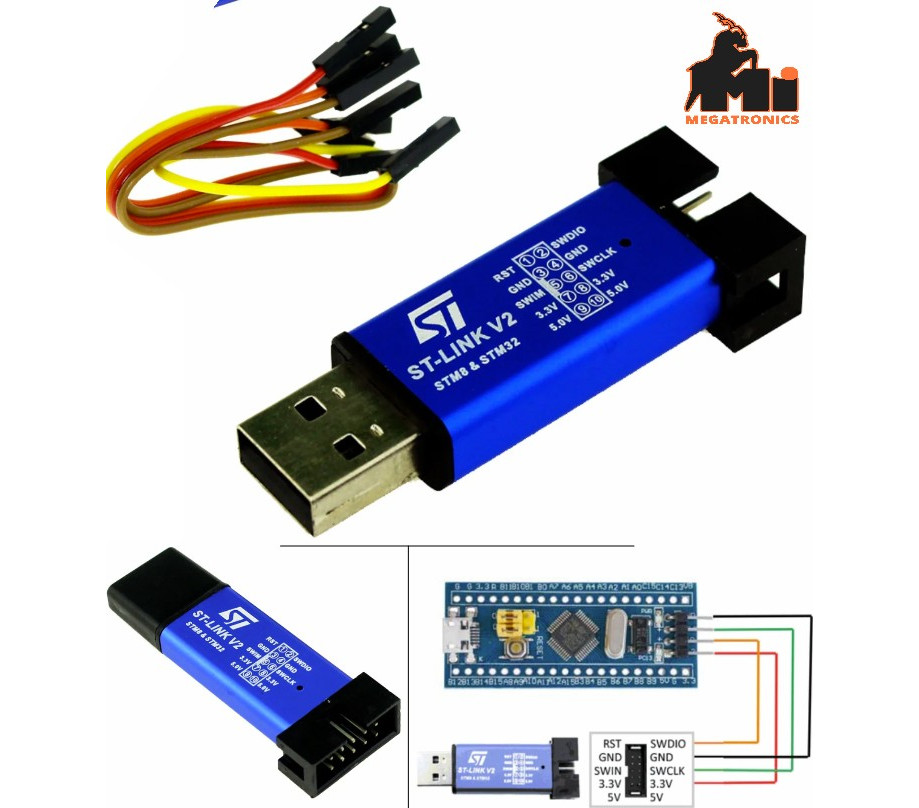

ST-Link V2 Programmer For STM8 STM32 emulator debugger Metallic Case
Programmer/Debugger For: STM8 and STM32
SWD and serial wire viewer (SWV) communication support
Status LED blinking during the communication with the PC
Output Voltage: 3.3V/5V
Interface definition directly marked on the shell
Internal motherboard with 500MA fuse for self-recovery
Direct firmware update support (DFU)
Operating temperature from 0 °C to 50 °C
The ST Link V2 Programmer is designed for STM8 and STM32 and is manufactured with PCB installed inside of aluminum alloy U disk shell. This factory firmware ST Link V2 programmer has been upgraded to support the full range STM32 SWD and a full range STM8 SWIM. STLink V2 support the full range of STM32 SWD debugging interface using a simple 4-wire interface (including power).
