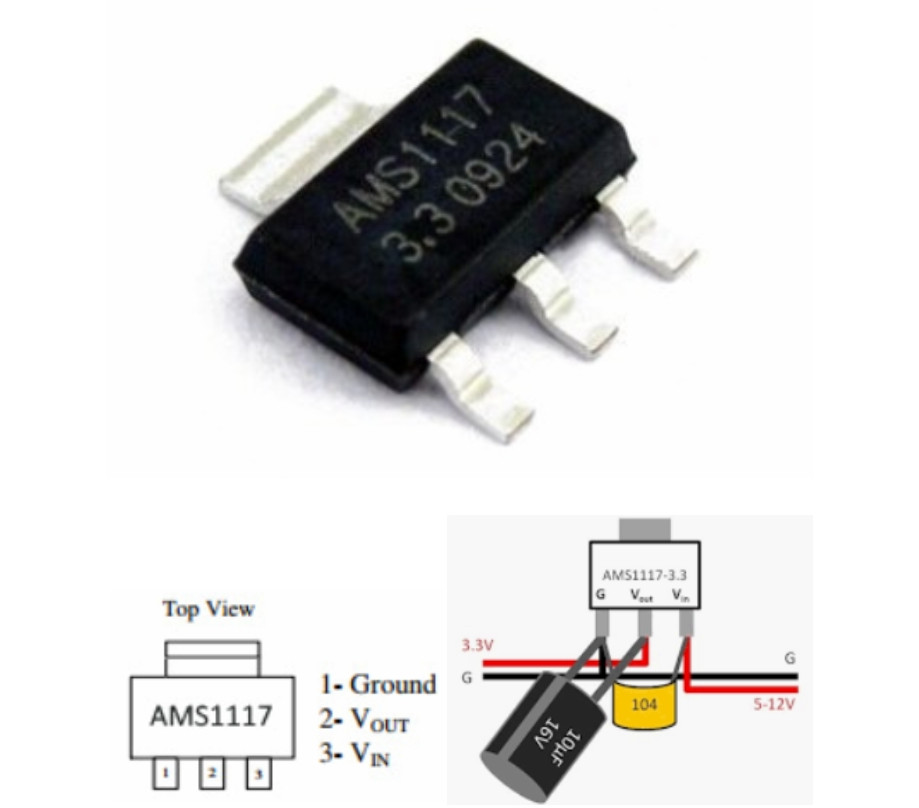

AMS1117-3.3V 3.3V Fixed voltage regulator SMD SOT-223 Linear Voltage Regulator
AMS1117 is a series of low dropout three -terminal regulators with a dropout of 1.3V at 1A load current. AMS 1117 features a very low standby current 2mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and 12V, AMS1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. AMS 1117 offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. . .
Three Terminal Fixed Voltage
High Efficiency Linear Regulators 3.3V
Post Regulators for Switching Supplies • Output Current of 1A • 3.3V Operates Down to 1V Dropout
Battery Chargers
Line Regulation: 0.2% Max.
Active SCSI Terminators
Load Regulation: 0.4% Max.
Power Management for Notebook
SOT-223
