push-pull type, DC electromagnet, used in door locks, electric control cabinet, storage cabinet and other aspects
of the electromagnetic lock, the applicable voltage is DC6V-12V, it come with cable connected
the lead wires are very long and nearly one meter long, which is convenient for various purposes of DIY.

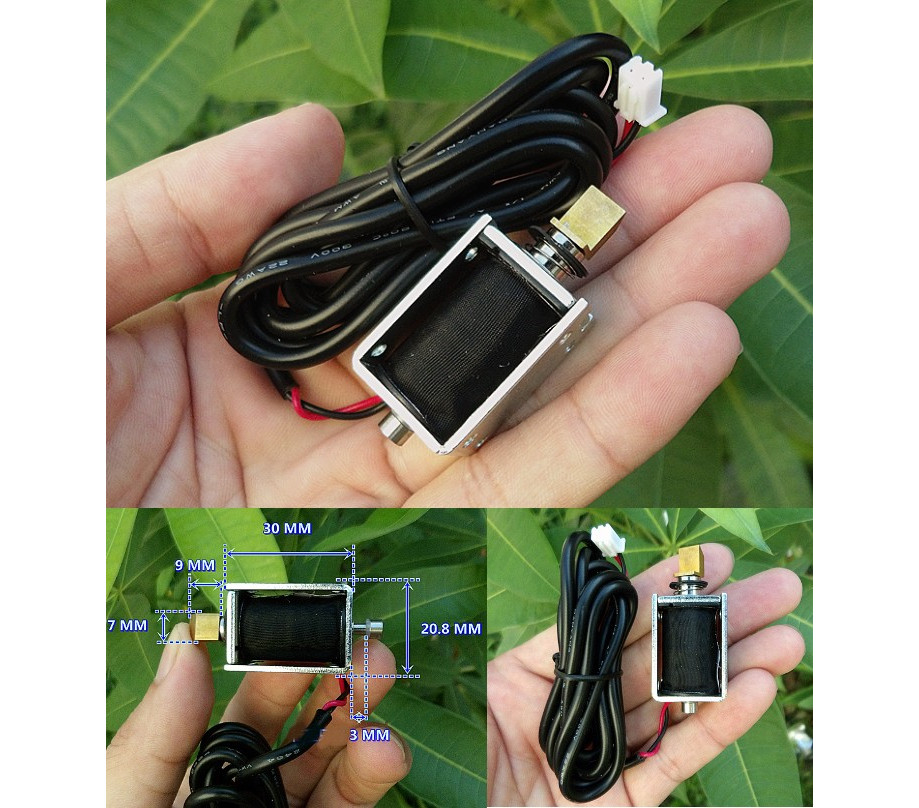

specifications:
Size 20.8 * 30 * 16.5 MM
cable length: approximately 900 MM long
Internal resistance: about 4.9 ohms
Weight: 64 grams
Voltage: 6 V Current: 1.1 A
Voltage: 7.2 V Current: 1.3 A
Voltage: 9 V Current: 1.65 A
Voltage: 12 V Current : 2.2 A
The higher the voltage, the larger the power of the electromagnet, the greater the suction,
but with larger the current it can easily heat. If the voltage is increased to DC12V,
the current reaches 2.2 A. If the energization time exceeds 20 secondsit will overheat,
it is not suitable for long-term power-on work, but if it is used in the electromagnetic lock, its working mode can only be used for a
moment less than 5 seconds, it should be able to use DC12V.
