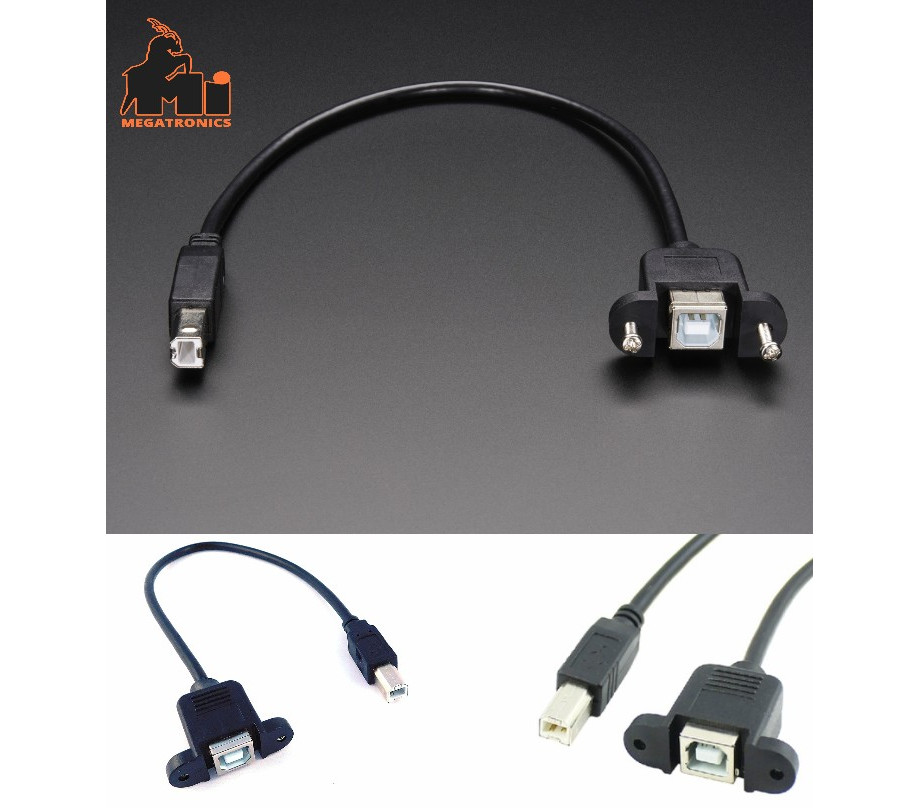

 Panel Mount USB Cable B Male to B Female Arduino



 Panel Mount USB Cable B Male to B Female Arduino

Product Details
  • SKU: ARDUSBE-G1S8
  • Brand: Megatronics.pk
  • Stock: Out of Stock

Product Pricing
PKR200.00
QTY: Pre Order
  • Trust


Product Description

DESCRIPTION

This handy USB extension cable will make it easy for you to enclose a device that has a B type port. We think this would be most handy when putting an Arduino in a box.



The jack half has two mounting 'ears' with M3 screws installed, 1.1" / 29mm apart. Can be used with box walls 0.125" to 0.25" wide. If you have a thinner-walled box, simply swap out the M3 screws for shorter ones. Cable, from connector to connector, is 13" long.



TECHNICAL DETAILS



Panel mount USB type B socket with USB type B plug at cable end

28 AWG data, 24 AWG power wires

Length: 330mm / 13"

Two M3 mounting screws, 1.1" / 29mm apart

Panel mount end dimensions: 38mm x 14.5mm / 1.5" x 0.57"
