Smart Electronic LCD Module Display Nokia 5110 LCD Red Screen LCD Module Red PCB Screen For Arduino
Note: Nokia5110 LCD is a second-hand dismantled screen of Nokia mobile phone. The LCDs sold on this site are all selected and of good quality.

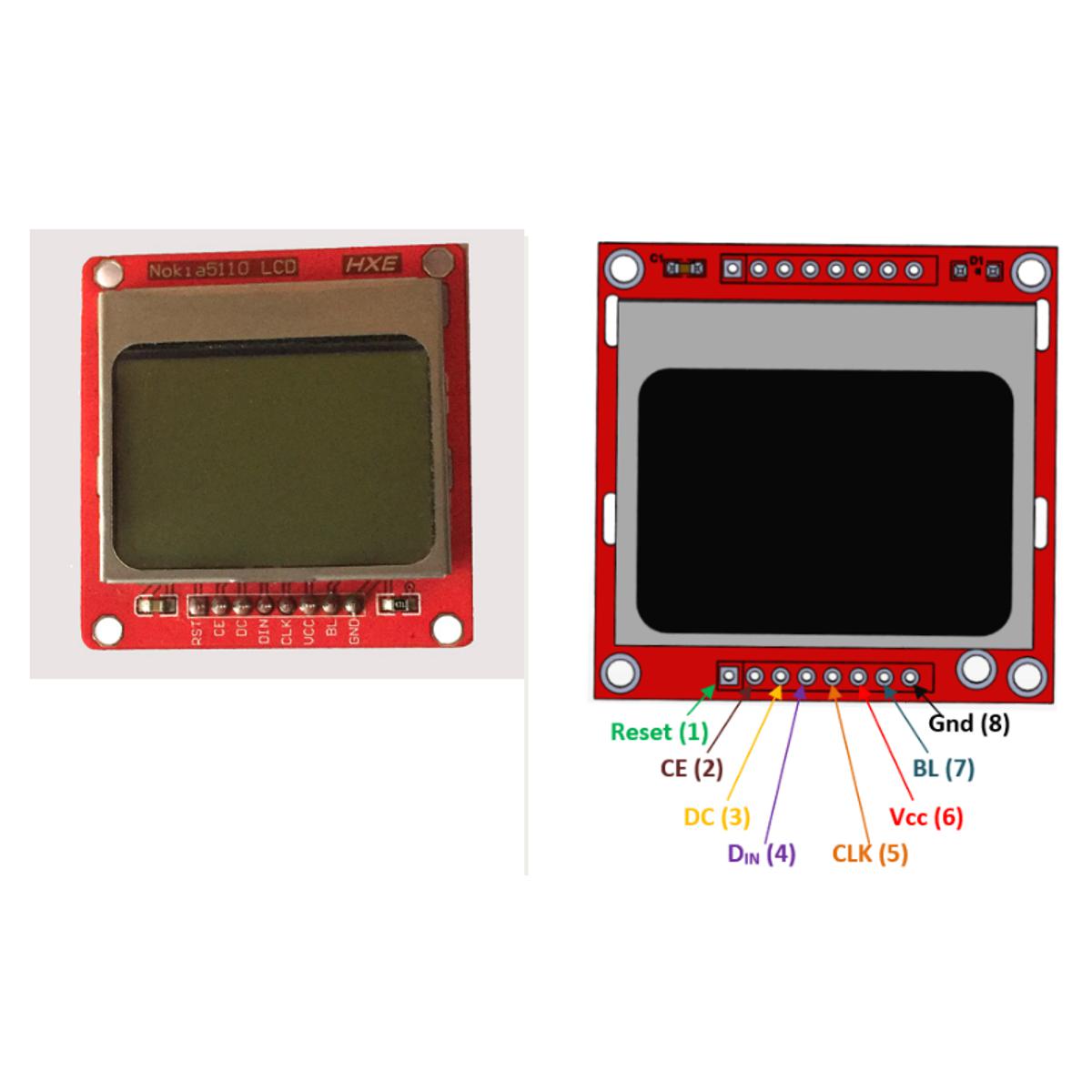

The bottom plate is designed for this station, with positioning holes at the four corners, and provides two rows of wiring ports at the same time, arranged as follows:
1. RST - Reset
2. CE - chip select
3. DC - data/command selection
4. DIN - serial data line
5. CLK - serial clock line
6. VCC -- power input (3.3v and 5v are both available, after experimental verification, there is no problem)
7. BL -- backlight control terminal
8. GND - ground wire
The interface is a serial SPI interface
Nokia 5110 LCD Module
Condition: New
Positioning hole for four corners
Provide two row terminals, red screen
Interface: serial SPI
Color as pictures
PLS NOTE that due to lighting effects, monitor's brightness/ contrass settings ect, there could be some slight differences in the color tone of the pictures and the actual item!
