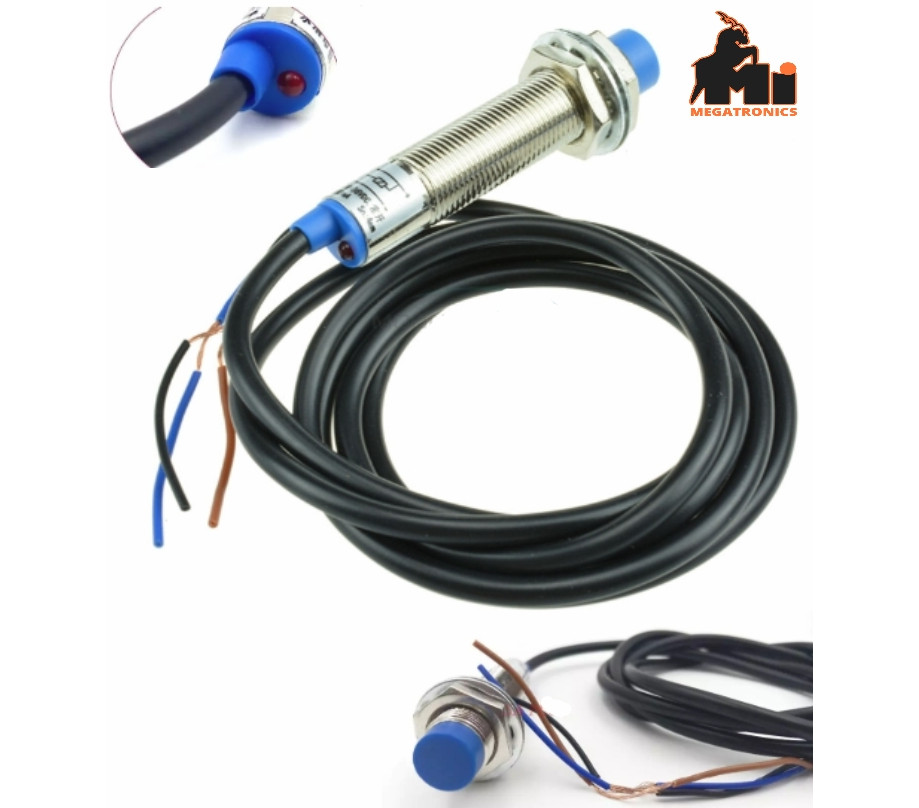

NJK-5002C Tubular Inductive Proximity Switch NPN 3 Wire Hall sensor DC LJ12A3-4-Z/BX LJ12A3-4-Z/BX Tubular Inductive Proximity Sensor Switch NPN 3 Wire DC 6-36V
Specification:
Detection distance: 4mm
Setting distance: 0-3.2 mm
Supply voltage: 6-36Vdc, 5Vdc; 90-250Vac, 36Vac, 380Vac, 50/60HzA
Output current DC type: 300mA max; AC Type: 400mA
Standard detected object: Mild steel (12x12x1mm)
Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency: 500Hz
Matched mounting bracket: M12 mounting bracket
Output indication: Red LED
Short-circuit protection: No
Reverse connection protection: Yes
Insulation resistance: 50MO min (between charging part and housing)
Dielectric strength: 1000Vac, 1min (between charging part and housing)
IP Rating: IP65
Operating temperature: -25 to 70 ?C (13 to 158 ?F)
