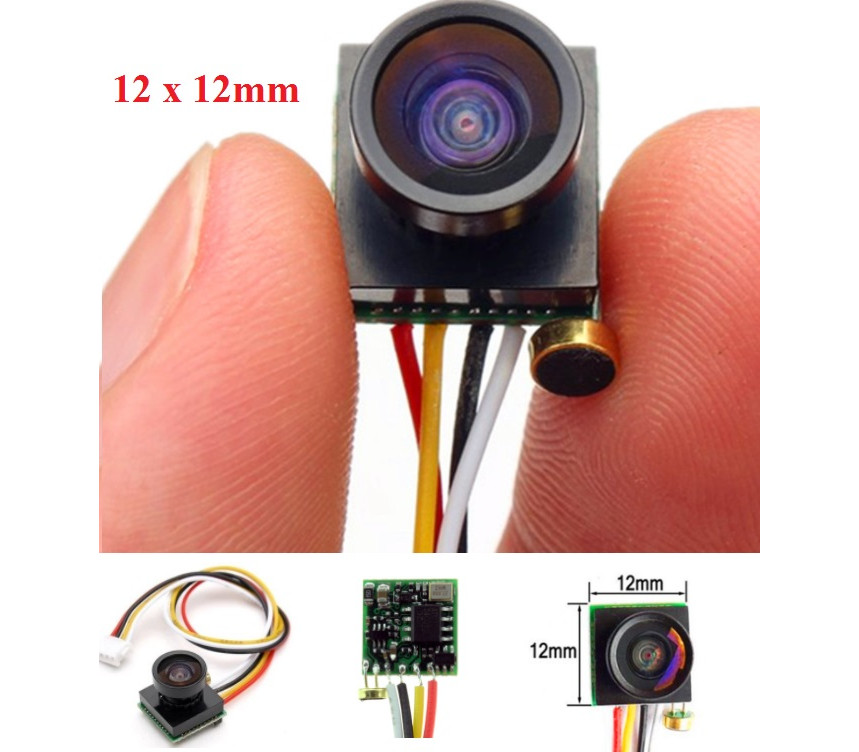

The 1/4 1.8mm Micro CMOS FPV camera with 170 degree Wide Angle Lens is the perfect option for FPV!
It's incredibly small, lightweight, and is easy to mount.
The small size also make the mounting options nearly limitless
Specification:
Resolution: 600 TVL 1280 x 960
Camera Dimensions: 12.5mm x 12.5mm x 17mm
Illumination: 0.5LUX
Format:PAL / NTSC
Power supply: 5V 100mA
Audio Lens: Wide-angle 1.8mm (170 degree)
Image sensor:1/4 CMOS image sensor
Sensitive area: 3.5964mm x 2.7084mm
648 pixels (horizontal) × 488 (vertical) 648 (horizontal) × 488 (vertical)
Scanning Frequency Horizontal: 15.625KHz
Vertical: 50Hz
level: 15.7343KHz
Vertical: 60Hz
Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
SNR =48dB (AGC OFF)
Minimum illumination : 0.1 Lux / F1.2
Composite video signal :1.0Vp-p 75O
Standard Lens :1.8 mm
Specifications PCB: 20mm*20mm
Power: DC5V ± 10% 70mA ± 10%
Operating temperature :-10 ? ~ 60 ? RH95% Max
Package Includes:
x1 600TVL Wide Angle Lens Camera
