12V 64RPM High torque Encoder gear motor full metal gear
rated voltage DC 12V
No-load current 50mA
blocking current 1A
No-load speed 64 rev / min
suitable voltage 6-12V (32-64 rpm)
Deceleration ratio 1:110 , high torque
weight 74 grams

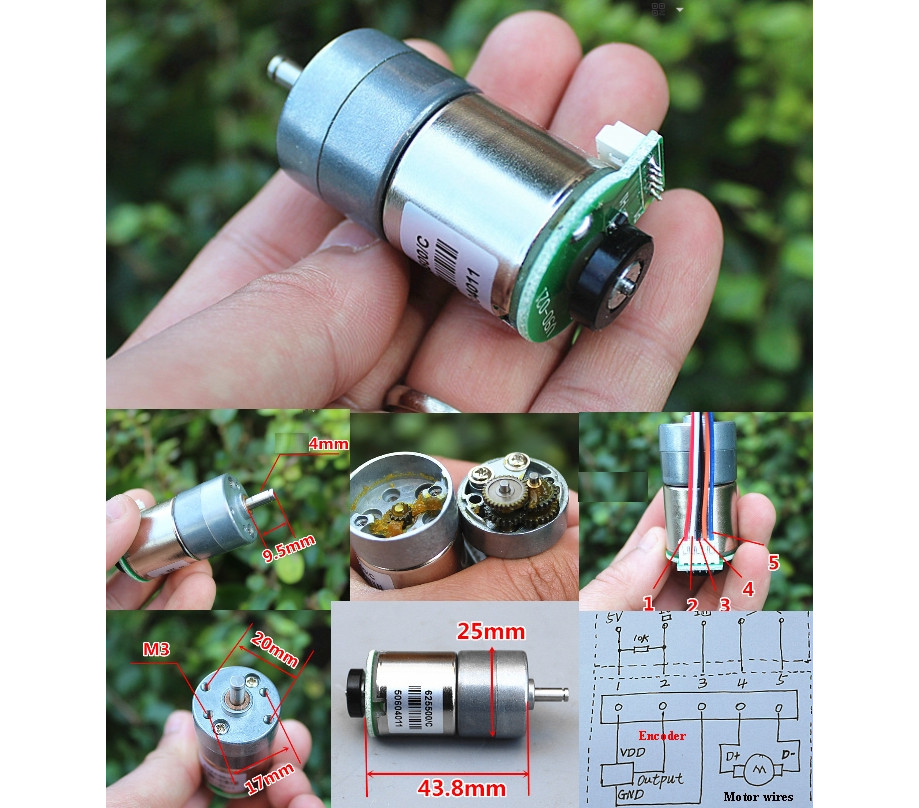

Pin definition:
1, Hall power input (external DC3-12V);
2, Hall signal output (external 10K pull-up resistor should be used when using it with microcontroller);
3, Hall ground line (external power ground);
4: 4-5 motor power
