MY1016 350W 24V DC Motor 11 Tooth gear ebike bicycle Chain Sprocket
A multi purpose 24 volt 350 watt brushed electric motor rated at 2750 without load and a 18.7a rated current
Features an 6mm 3/4 Moon drive shaft and 11 tooth 6mm sprocket. The ZY
and MY motor codes dictate small differences in some of the motors dimensions and specification
Incorporates a welded mount bracket for easy fitment to multiple applications
The drive is clockwise. It can operate in forward or reverse
Specification:
Material: Copper wire, iron
Color: Black
Drive: Clockwise
Voltage: 24 V
Wattage: 350 W
Rated Current: 18.7 A
Chain Size: 16mm (25H)
Rated Speed: 2750 RPM
Number of Teeth on Sprocket: 11
Wiring: 2 (Nagative: Black ; Positive: Red)
A welded mount bracket for easy fitment to multiple applications.

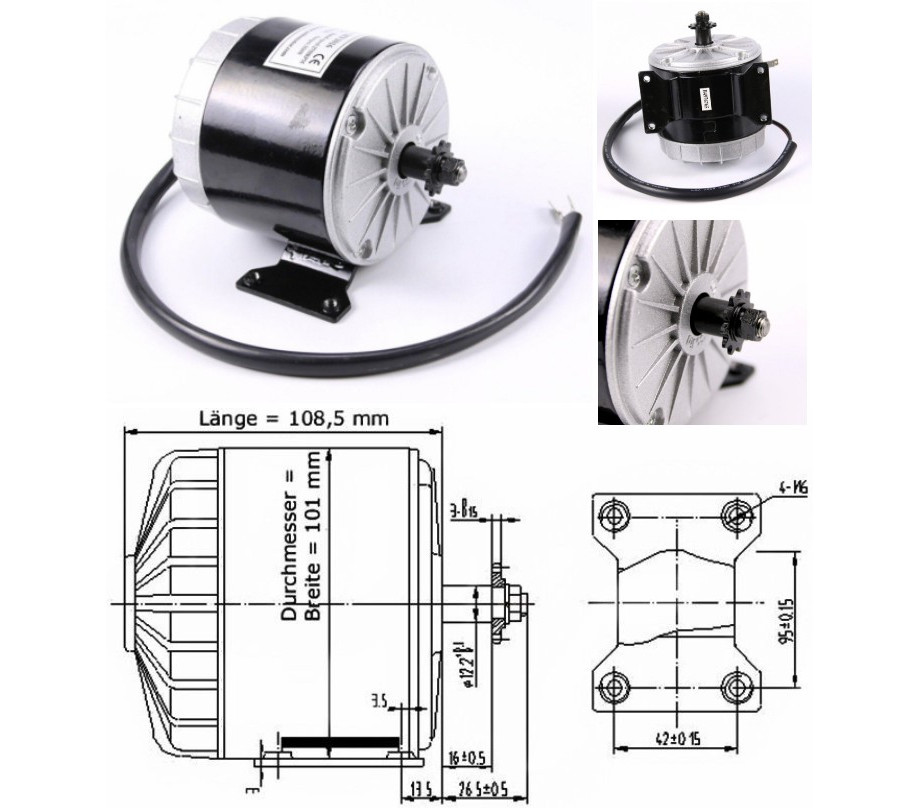

Measurement:
Barrel Diameter: 102mm/ 4"
Barrel Length 105mm / 4"
Height: 118mm/ 4.6"
24 volt 350W output ,electric scooter and bike motor.
Comes with an 11-tooth, #25 chain sprocket as well as a 4-bolt mounting bracket on the base.
This motor is capable of rotation in either the clockwise or counter clockwise direction by just reversing the battery polarity to the motor and can be speed controlled.
