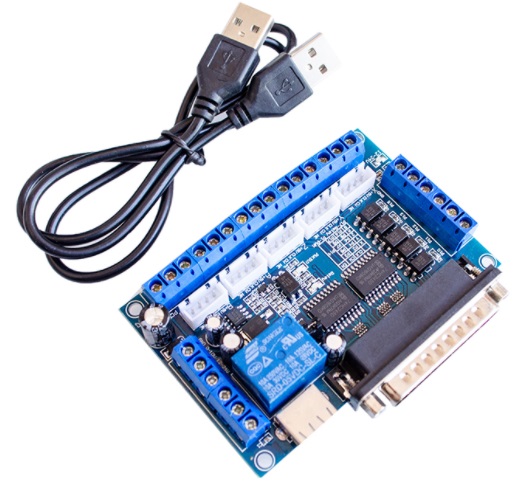

Description:
1.Full support MACH3 and other support parallel port control computer software.
2, USB power supply and external power supply phase separation, ensure computer security.
3, peripheral wide input voltage, 12-24V, and anti reverse function.
4, all the input signal by optical coupling isolation, can connect stop, knife, limit, etc, guarantee the security of the computer.
5, One way relay output port, which can control the main switch. The output port is P17 port.
6,one way through the optocouplerisolation0-10V analog output voltage, can control the frequency converter with the corresponding analog interface, controlling spindle speed. The output port is P1 port.
7, open all 17 ports, can be connected driver with optical drive, can control 5 axis stepper motor.
8, P1 as the PWM output, can control the spindle speed regulator with optocoupler input.
9, Can connect common cathode or common anode, input level for the 5V driver.
10, plate printing all port name, stick out a mile.
-
;Full support MACH3; and other support parallel port control computer software.
-
;USB power supply and external power supply phase separation, ensure computer security.
-
;Peripheral wide input voltage, 12-24V, and anti reverse function.
• All the input signal by optical coupling isolation, can connect; stop, knife, limit, etc, guarantee the
security of the computer.
• One way relay output port, which can control the main switch. The output
port is P17 port.
• One way through the optocouplerisolation0-10V analog output voltage, can
control the frequency converter with the corresponding analog interface,
controlling spindle speed. The output port is P1 port.
• Open all 17 ports, can be connected driver with optical drive, can
control 5 axis stepper motor.
• P1 as the PWM output, can control the spindle speed regulator with
optocoupler input.
• Can connect; common cathode or
common anode, input level for the 5V driver.
• Plate printing all port name, stick out a mile.
