LM7809CV Voltage Regulator 9V

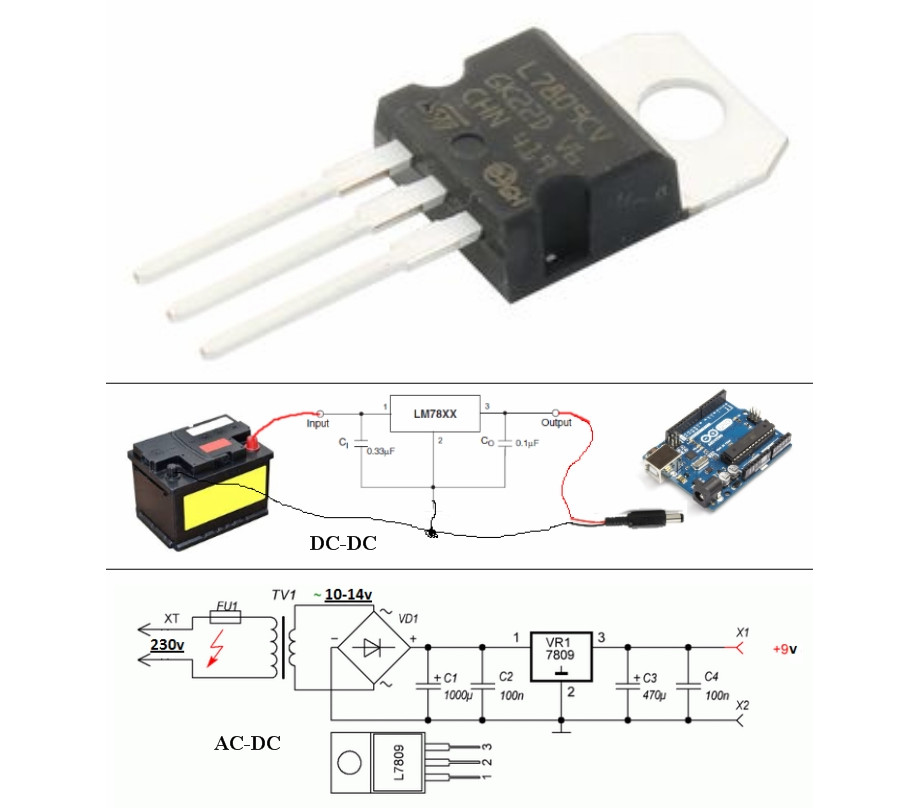

7809 is a voltage regulator integrated circuit. It is a member of 78xx series of fixed linear voltage regulator ICs. The voltage source in a circuit may have fluctuations and would not give the fixed voltage output. The voltage regulator IC maintains the output voltage at a constant value. The xx in 78xx indicates the fixed output voltage it is designed to provide. 7809 provides +9V regulated power supply. Capacitors of suitable values can be connected at input and output pins depending upon the respective voltage levels.
Part Number : LM7809CV
Part Type : Postive Variable Voltage Regulator
Output Voltage : +9V
Max Output Current : 1A
Max Input Voltage : 35V
Temperature Range : 0 to 125 degC
Case Style : TO-220
