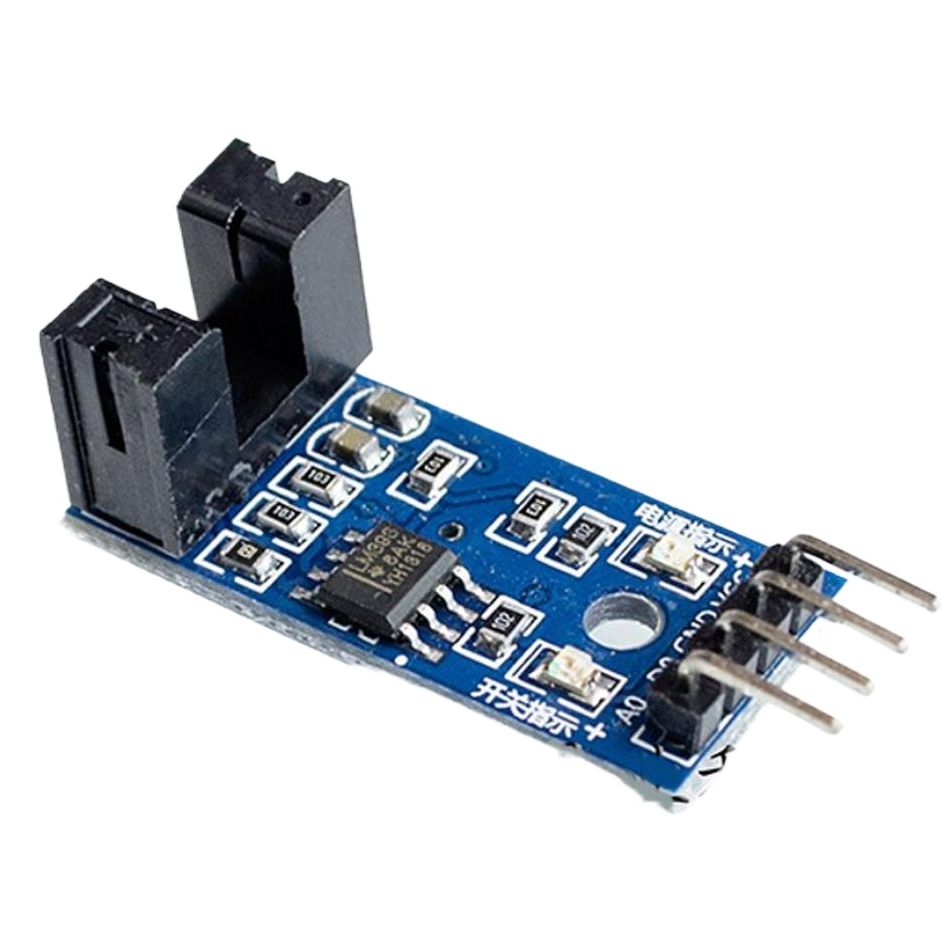

LM393 Infrared Velometer optical encoder Speed Sensor Optocoupler Tacho Sensor Slot-type Tacho-generator Counter 1. Working voltage: 3.3--5.5V 2. The use of imported groove coupler sensor, the groove width of 5mm. 3. The sensor slots are blocked, the output high and the light is off; no shelter, output low and lights. 4. Output form: Digital switching output (0 and 1) 5. Using LM393 comparator output, type clean, good waveform, driving ability over 15mA. 6. A fixed bolt hole for easy mounting.
Having a signal output directions. a single-channel signal output. the output valid signal is low.
The sensitivity is not adjustable, can be used for parts counting, motor speed, the circuit board output switch.
Power : DC5V
Total Size : 3.2 x 2 x 1.8cm/1.26" x 0.78" x 0.7"(L*W*H)
Net Weight : 4g
