Product Description:
A module to adjust the power supply
Main Features: Short circuit protection
feature: current limiting, since the recovery
Input voltage: 4.5-40V
Output voltage:1.5-35V(Adjustable)
Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)
Dynamic response speed:5% 200uS
Conversion efficiency: Up to 92%(output voltage higher,the higher the efficiency)
Switching Frequency:150KHz
Rectifier: Non-Synchronous Rectification
Module Properties:Non-isolated step-down module(buck)
Operating temperature: Industrial grade (-40°C to +85°C ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: ± 0.5%
Voltage regulation:± 2.5%
Dimension: 43*20*14mm(L*W*H)

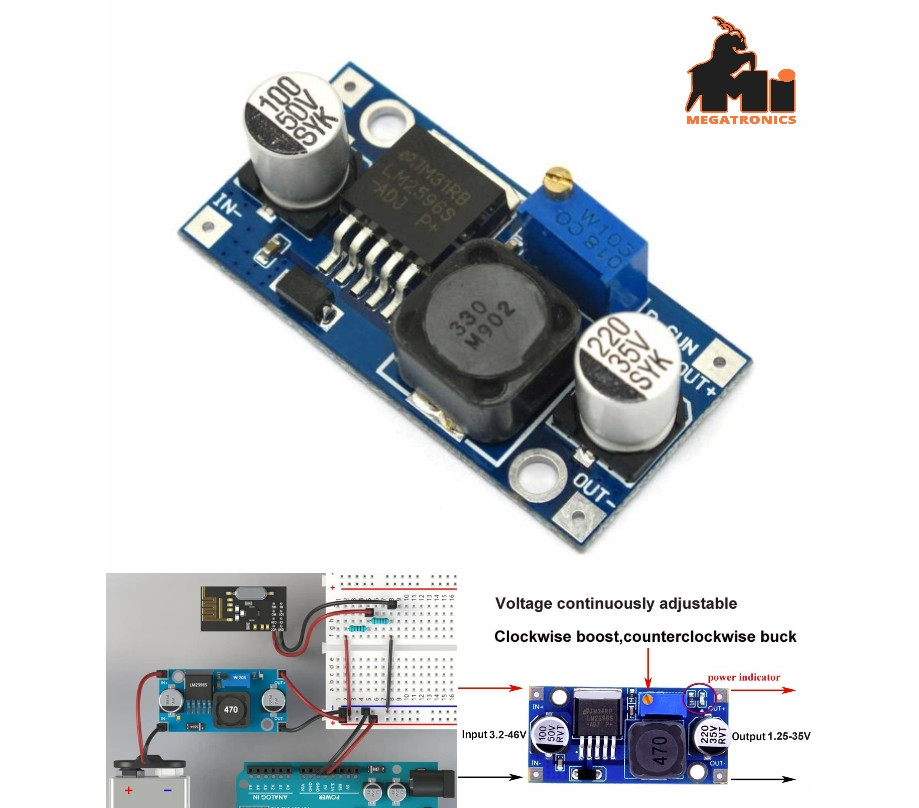

Package include: 1x LM2596 adjustable power module
