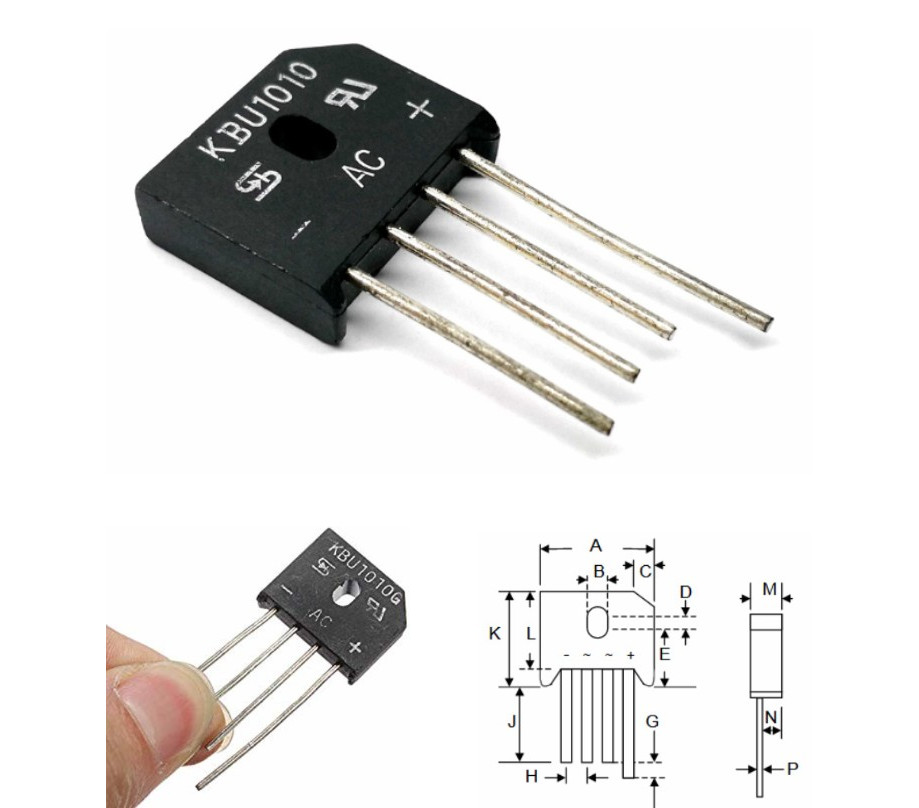

KBU1010 10A 1000V Diode bridge Rectifier IC KBU-1010
The KBU Series offers a range of bridge rectifiers in 600 V/1000 V with a forward current of 6A up to 25A. They are widely seen on printed circuit board (aPCB) applications and are used for AC to DC conversion.
[Features]
Ideal for P.C. Board mounting
High surge current capability
High temperature soldering guaranteed 265 C /10
seconds at 5 lbs (2.3kg) tension
[Specifications]
Bridge Type: Single Phase
Peak Average Forward Current: 10A
Peak Reverse Repetitive Voltage: 1000V
Mounting Type: Through Hole
Package Type: KBU
Pin Count: 4
Diode Technology: Silicon Junction
Diode Type: Silicon Junction
Configuration: Single
Peak Non-Repetitive Forward Surge Current: 240A
Maximum Operating Temperature: +150 °C
Minimum Operating Temperature: -55 °C
Peak Forward Voltage: 1V
Peak Reverse Current: 500µA
Dimensions: 23.7 x 7 x 19.8mm
