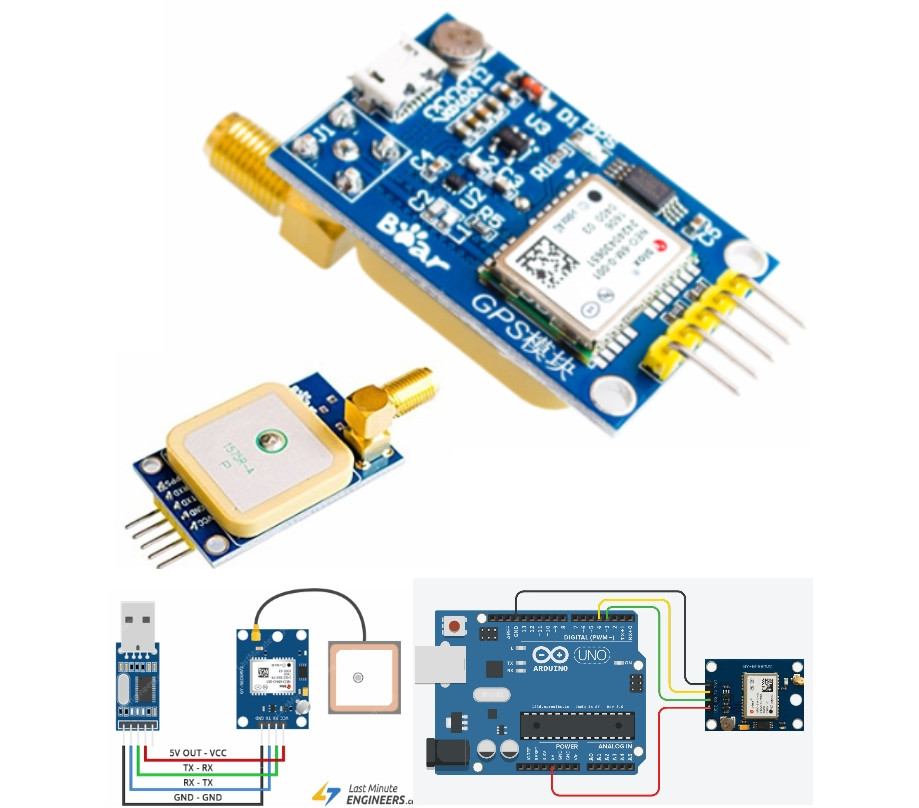

This is an easy and simple-to-use GPS Receiver. It is the updated version of the hugely popular NEO6M GPS Receiver. Just power it with 5V and it will start sending GPS output in the serial interface. You can then read this data from your microcontroller, Arduino, Raspberry Pi, ESP32, etc. This module can provide latitude and longitude positions within 3 seconds of powerup in ideal conditions!
The NEO-M8N GPS Module GY-NEO8MV2 is optimized for cost-sensitive applications, it provides the best performance and easier RF integration at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.
The module comes with a general-purpose patch antenna. This can be replaced by a better-quality GPS antenna to increase performance.
The NEO-M8 series of concurrent GNSS modules are built on the high-performing M8 GNSS engine in the industry-proven NEO form factor.NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.
Specifications:
Model: NEO M8N GPS Module
Default baud rate: 9600.
Supply Voltage: 3V to 5V
Antenna size 25*25mm
Module size 25mm*35mm
Mounting aperture 3mm
Features :
The ceramic antenna provides a very strong signal
With LED indicator lamp
With data backup battery.
LED signal indicator.
Compatible with various flight controller modules.
EEPROM saves the configuration parameter data when power-down.
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO
Built-in RTC crystal
Anti-jamming Active CW detection and removal.
Extra onboard SAW bandpass filter
Memory Flash
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time
Package Includes 1 x NEO M8N GPS Module.
