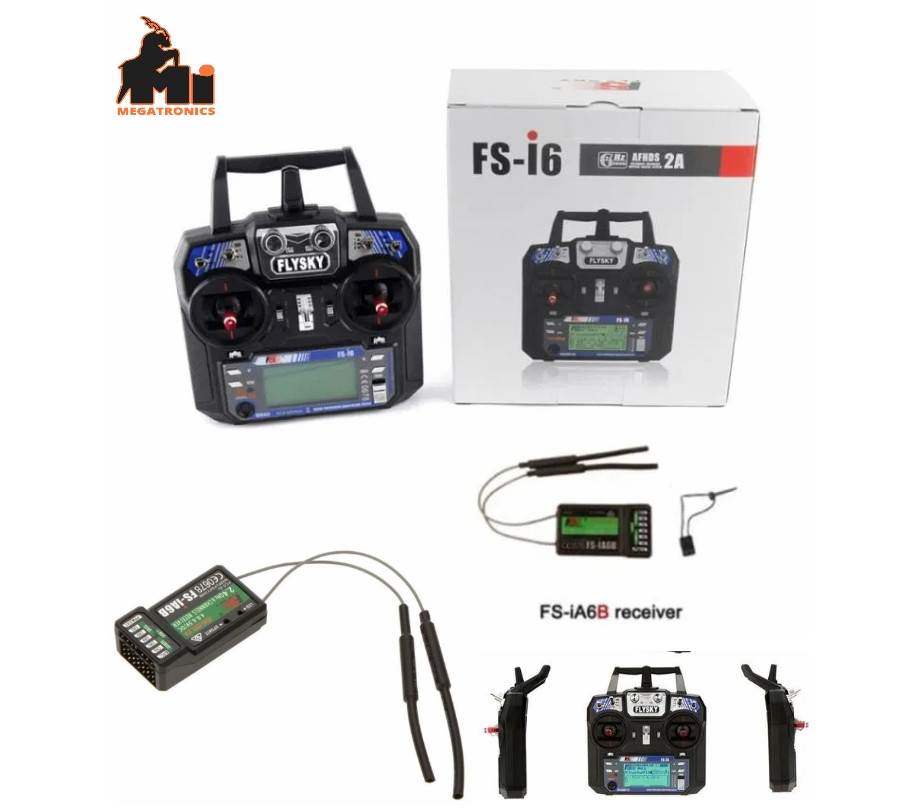

Flysky FS-i6 Transmitter FS-iA6B Receiver Digital Proportional Radio System
Features:
• 6 channel 2.4ghz radio with telemetry capability
• Dual Rate/Trims/Gear/Flap/Gyro Gain Adjust/Flight Mode/Throttle Hold/Hover Pitch Switches
• Easy to use Programming & Navigation Buttons
• Supports Heli/Standard Wing/Elevon/V-Tail
• 20 Model Memory
• 8 Character Model Name
• Trainer port
• Backlit LCD Screen displays real time transmitter and receiver voltage
• 4 Stick Mode Selectable
• Optional telemetry receivers and sensors available separately
Basic Programming Functions:
Dual Rates
Sub Trim
Travel Adjust
Channel Reverse
Swash Mix
Gyro Sensitivity
Throttle Curve
Monitor
Pitch Curve
Throttle Hold
Model Name
Timer
FlySky - i6 Transmitter Specs:
Frequency: 2.4ghz ISM Frequency Range
Modulation: GFSK
Spread Spectrum Mode: AFHDS 2A and AFHDS
Band: 142
Number of Frequency Channels: 20
Output Power: <=20dbm
Working Current: <=100mA
Working Voltage: 1.5v x 4 AA
Dimensions: 174x89x190mm
Weight: 392g
Resolution: 1024 bit
Stick Mode: Mode 2 (Throttle Left)
FlySky - iA6B Receiver Specs:
Channels: 6
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.4055-2.475GHz
RF Channel: 140
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
Power: 4.0-6.5V DC
Antenna Length: 150mm
(Dual Antenna)
Weight: 14.9g
Size: 47*26.2*15mm
i-BUS Port: Yes
Data Acquisition Port: Yes
Color: Black
Certificate: CE0678, FCC
