FPV camera 3 Channel Video Switcher 3 Way Video Switch 5.8g Drone airplan RC
This product can be connected to 3 video sources and can switch different video sources. If there are multiple cameras on your aircraft, this is the multi-view switching product you need.
Supports 5-12V power supply, the control signal adopts PWM signal, and the performance is stable
Use high-speed video switching chip to effectively reduce the vibration of video images
Parameters:
Name: 3-channel video switching module
Input channels: 3
Voltage: DC5-12V
Video signal impedance: 75Ω
Control signal: PWM
In1: 1000us ± 200
In2: 1500us ± 200
In3: 2000us ± 200

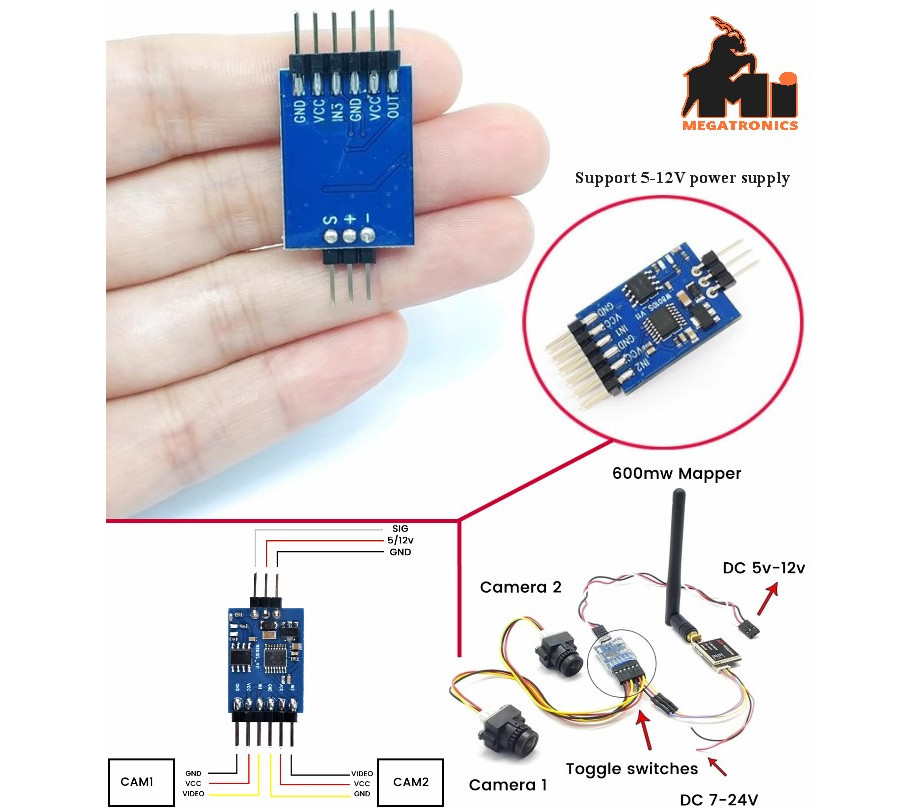

This module can connect 3 video sources, and you can switch different video sources through the 3-position switch. If you have multiple cameras on your aircraft, this is the product you need.
The control channel can be any ratio channel or 3-bit switching channel. The 2-bit switching channel can only switch between two video input signals.
Port ""in" is the video signal input, in1, in2, in3, out are the video signal output, ""-" is the negative pole, ""+" is the pause and ""s" is the video signal reception.
Package:
1 piece 3 channel video switching module
