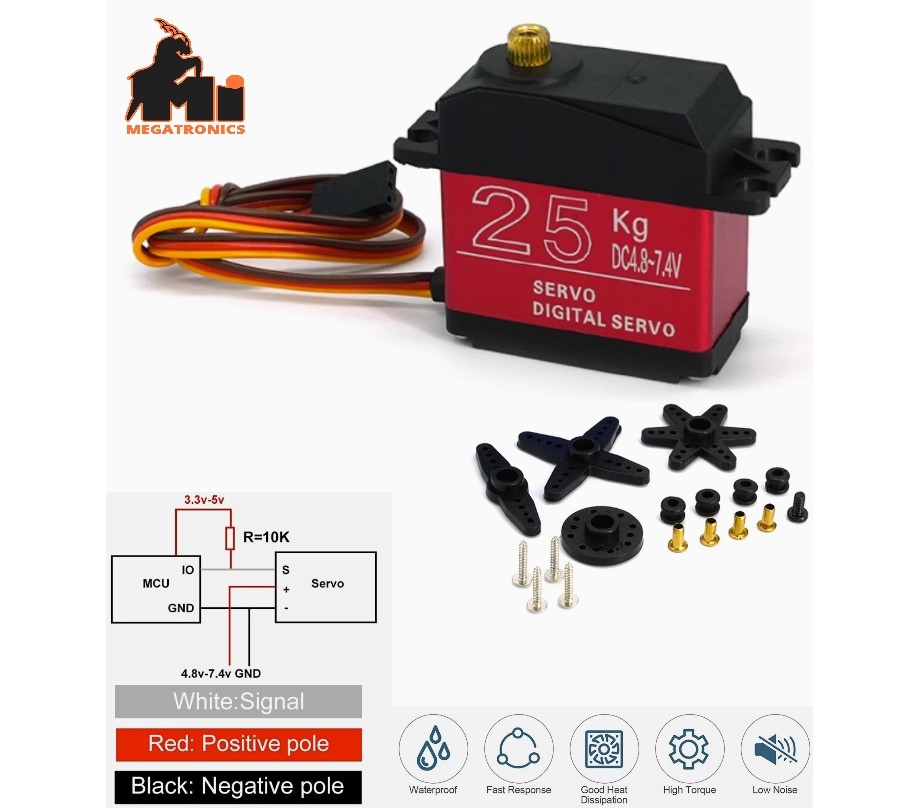

Type: DS3225 Digital Servo
Operating voltage: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Dead band: 3µs
Working frequency: 50-333Hz
Connector wire: About 300mm
Gear type: Metal/Motor Type
Motor Type: DC motor
Size: 40 x 20 x 40.5mm ( 1.58 x 0.79 x 1.60 in)
25kg-180°High Torque Servo Motor: This rc servo boasts a maximum torque of 25KG.CM 7.2V, enhanced by its accompanying metal servo arm.
Delivering robust power, it is housed within an anodized aluminum case that facilitates excellent heat dissipation and effectively reduces power consumption.
This digital RC servo comes with metal gear and dual-ball bearings, which are well-made with exceptional performance, stability, and minimal noise output. By integrating a high-precision potentiometer, its accuracy and linearity are greatly enhanced leading to an extended service life.
It fits 1/6 1/8 1/10 1/12 RC cars, robots, vehicle/boat/airplane models, and any DIY. Crafted with high precision and thorough sealing, this rc servo provides IP67 water resistance, which allows it to operate even in the presence of water splashes.
