Power supply switch ON OFF KCD1-104 220V Red light Rocker Switch 21*15mm DPST
6A 250VAC KCD1-104 Rocker Switch 4pin On Off DPST 12V 220V with Red led light Black Latching 15x21 switch
Item No: KCD1-104
Size: 15x21mm
Switch Function: ON-OFF
Rating: 6A/250VAC 10A/125VAC also work on 5V 12V DC but no light glow
Operation Temperature: T85
Contact Resistance: 50m
Insulation Resistance: 100M
Dielectric Strength: 1500AC for 1min LED
Voltage: 5V/12V/24V/110V/220V (Light glow on 110 and 220)

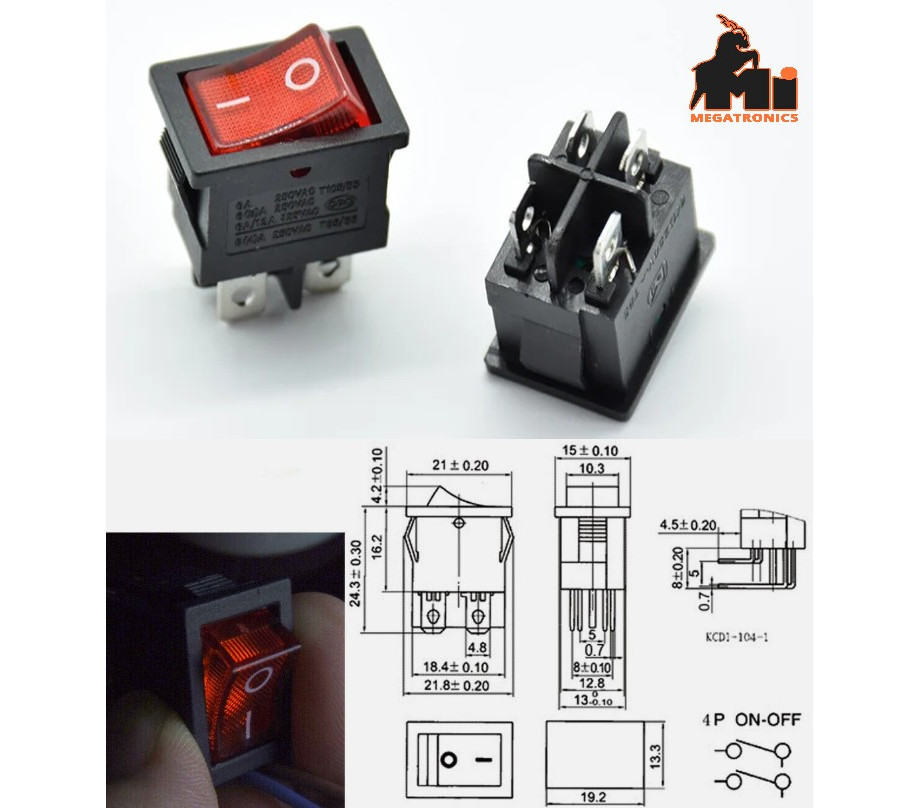

Switch Function Illustration
