 74HC161 4Bit Binary Counter Async Reset 74161 ic



64 Sold in Last 24 Hour

 74HC161 4Bit Binary Counter Async Reset 74161 ic

Product Details
  • SKU: 74LS08-K85S1
  • Brand: Megatronics.pk
  • Stock: 562pcs

Product Pricing
PKR60.00
  • Trust


Product Description

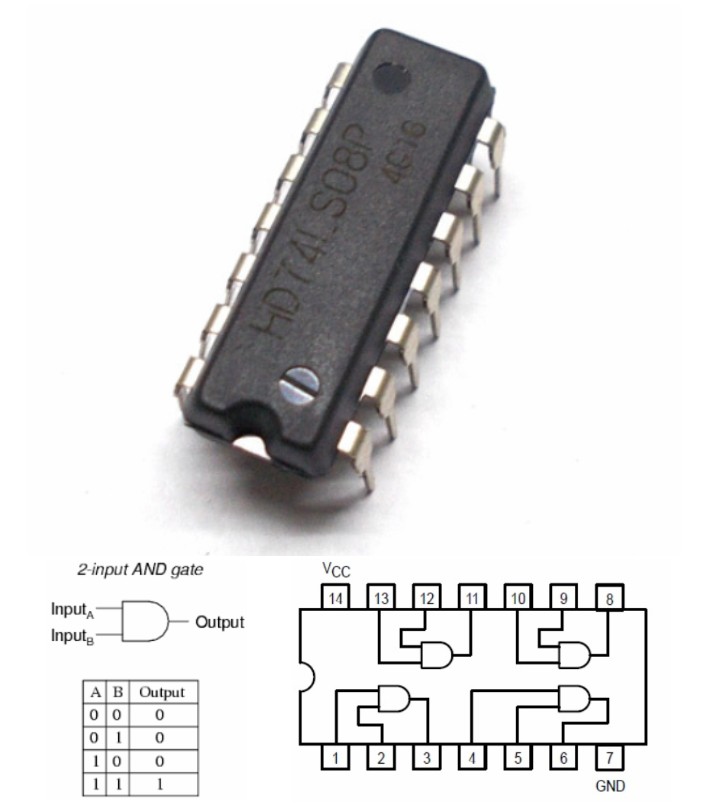

74LS08 Quad 2-Input AND & Gate 7408

The 74ls08 quad 2 input and gates contains four independent gates each of which performs the logic AND function. 74ls08 quad 2 input and gate IC can be soldered directly to the circuit board or can be mounted on a 14 pin IC base. The 74ls08 quad 2 input and gates circuit is designed such that the AND operation of the input pins 1 &2 , 4&5, 9&10, 12,13 are produced on the pin 3 , 6, 8 & 11 respectively. Operating supply voltages to the IC can vary between 4.75V to 5V and to a maximum of 5.25V and the input logic levels to the device in '0'(LOW) state is max. 0.8V and for '1'(HIGH) state is min 2V.


Features of 74LS08 Quad 2-Input AND Gate
Operating Voltage Range 4.75V to 5V up to a maximum of5.25V.
Operating Temperature range 0 DegreeC to +70 DegreeC.
VH (Output High) 2.7V to 3.4V.
VL (Output Low) 0.36V to 0.5V.
Power Consumption 4.8mA to 8.8mA.
Operating Speed (Mhz)125 - 250.

Applications of 74LS08 Quad 2-Input AND Gate
Logical Decision making.
Circuits involving conditional operations.
DIY projects for various logic gates based applications
