7411 SN74HC11N 3-input AND Gate 74HC11 DIP-14 logic gates

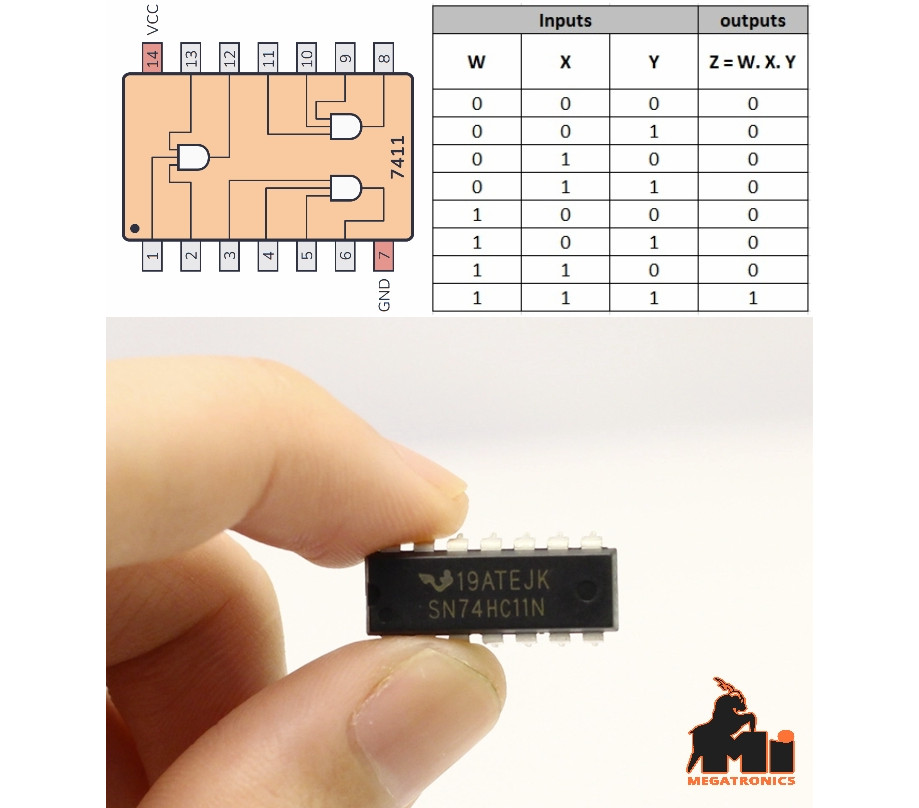

The AND gate is a basic digital logic gate that implements logical conjunction (∧) from mathematical logic – AND gate behaves according to the truth table.
A HIGH output (1) results only if all the inputs to the AND gate are HIGH (1).
The SN74HC11N is a 3-input triple Positive-AND Gate performs the Boolean function Y=A.B.C or Y=(A\ + B\ + C\)\ in positive logic.
1µA Maximum low input current. ±20mA Input and output clamp current. ±25mA Continuous output current. ±50mA Continuous current through VCC or GND.
Outputs can drive up to 10 LSTTL loads.
20µA Maximum low power consumption.
8ns Typical tpd. ±4mA Output drive at 5V.
Logic Type: AND
No. of Inputs: 3;
Supply Voltage Min: 2V.
Supply Voltage Max: 6V
No. of Pins: 14 Pins
