 3S BMS 11.1V 12.6V 7A 18650 charging Lithium Battery Protection Board Short-circ

Product Details
  • SKU: 3SBPB13A-Q126
  • Brand: Megatronics.pk
  • Stock: 21pcs

Product Pricing
PKR600.00
  • Trust


Product Description

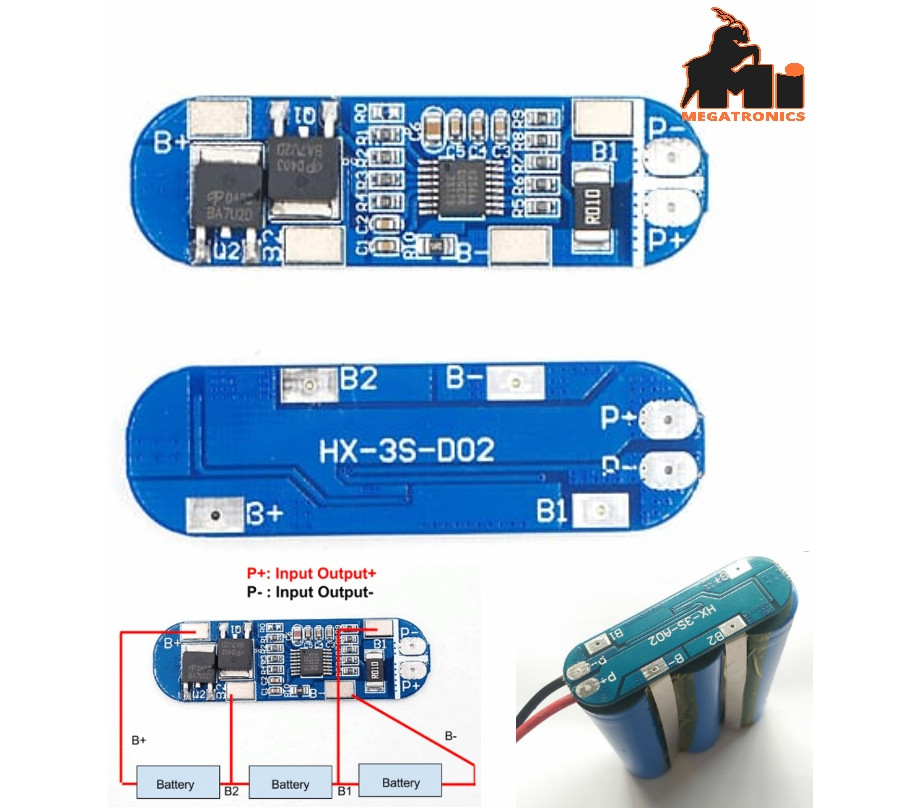

3S BMS 11.1V 12.6V 7A 18650 Lithium Battery Protection Board Short-circuit Protection Modul

Model: HXYP-3S-CM10
Overcharge Voltage Range: 4.25V ± 0.05V
Overpressure Voltage Range: 2.5V ± 0.05V
Upper Limit Operating Current: 7A
Upper Limit Instantaneous Current: 10A
Quiescent Current: <30uA
Charging Voltage: 12.6V-13V
Upper Charging Current: 5A
Size: 52.8 * 17.8 * 3.5mm
Short Circuit Protection: protection, delay self-recovery

Three batteries ( 18650 )  can be connected to the  HXYP-3S-CM10 module simultaneously . The features of this charge controller are: protection against short circuit (short circuit) and protection against overdischarge (overcharge). Another feature of the module is that the power supply to the batteries is turned off when the maximum capacity of at least one battery is reached. The maximum operating current of this BMS controller is 10 A, and the quiescent current does not exceed 30 μA. The battery is switched off when the voltage reaches 4.25 V, and the battery is discharged when the voltage drops to 2.75 V.

Package included:
1 x 3S Lithium Battery Protection Board
