2N3906 2A PNP Transistor General Purpose switching Amplifier
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.31 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 135 °C
Transition Frequency (ft): 250 MHz
Collector Capacitance (Cc): 5 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Noise Figure, dB: -

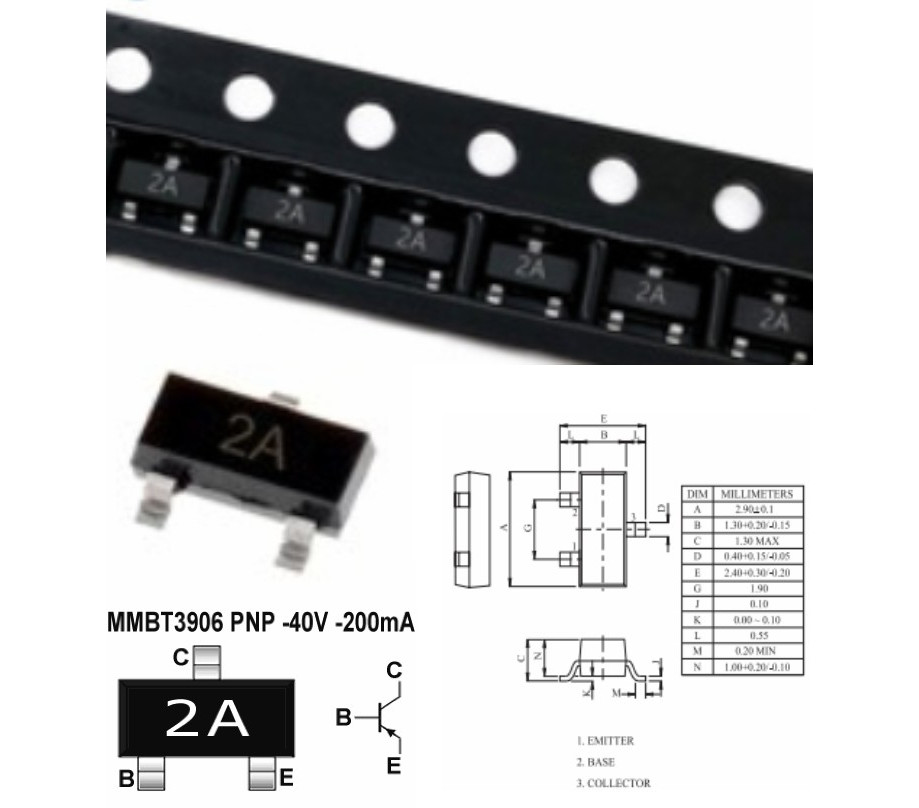

Package: SOT-23............
