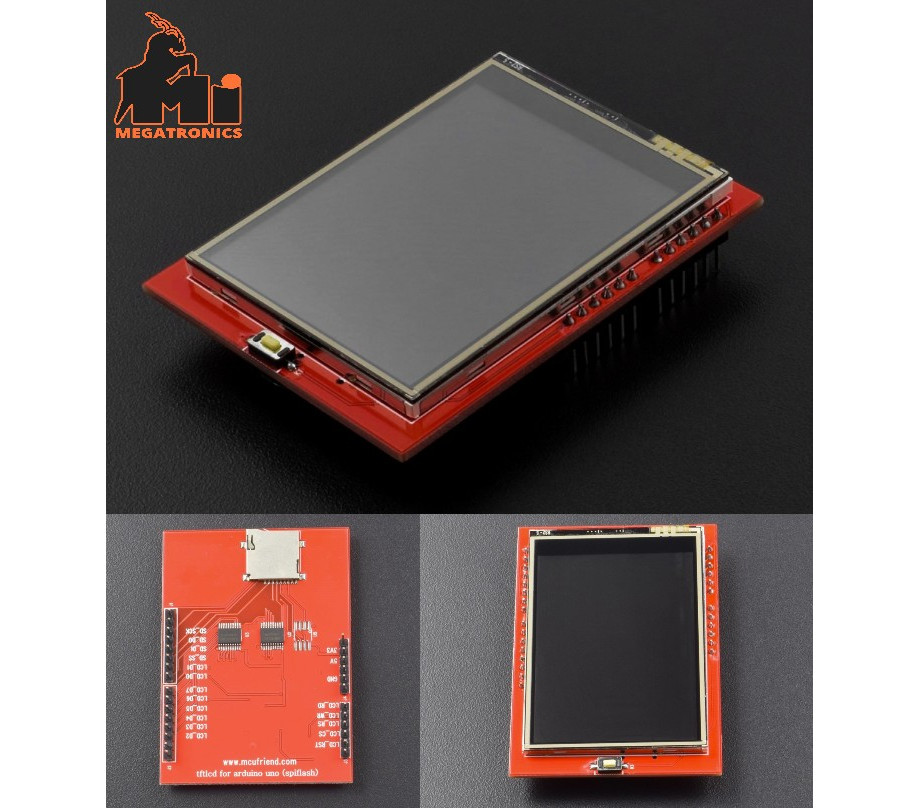

Spice up your Arduino project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.4" diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades)! 240x320 pixels with individual pixel control. It has way more resolution than a black and white 128x64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.
Technical Details:
2.4" diagonal LCD TFT display
240x320 resolution, 18-bit (262,000) color
spfd5408 controller with built in video RAM buffer
8 bit digital interface, plus 4 control lines
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the microSD
Works with any Arduino '328 or Mega
5V compatible! Use with 3.3V or 5V logic
Onboard 3.3V @ 300mA LDO regulator
4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control
4-wire resistive touchscreen
