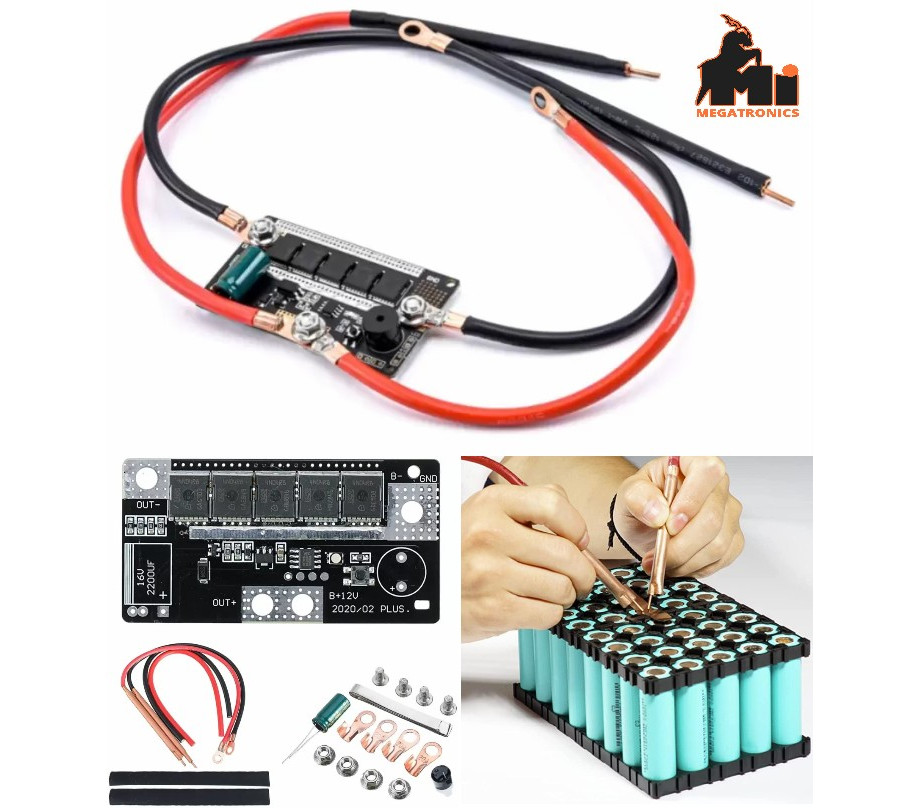

12V DIY Spot welding machine pen accessories full set of accessories DIY portable 12V battery energy storage spot welding machine PCB circuit board
It is used for welding 18650/26650/32650 and other lithium batteries.
Advantages: portable, stable, reliable and durable.
Users need to prepare their own 12V battery for power supply, and the welding current is about 90A~150A. It is easy to weld the common 0.1mm~0.12mm nickel-plated sheet.
After several generations of product updates, it is now upgraded to automatically trigger welding, freeing the fingers of the button.
System voltage: 12V
Working current: 90-150A
Battery recommendation:
20-45ah lead-acid battery with good performance and low internal resistance
3.5-5.5ah 45C or so 3S model aircraft lithium battery pack
30-35ah capacity type 18650 battery pack
The battery pack that can start the car can basically meet the power supply requirements of this circuit
Function description: After power on, press and hold the switch for 2 seconds to start up
There are 4 modes. Long press the switch for 3 seconds to switch to the "beep" sound and complete the 1st mode: the low power green light flashes once
2nd gear: medium power green light flashes twice 3rd gear: high power green light flashes 3 times 4th gear: automatic mode red light is always on
Turn off the device after long pressing the switch while the red light is on
